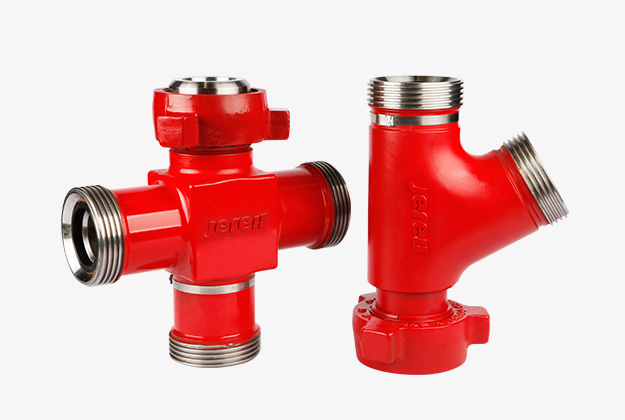

Integral Fittings

Integral fittings are mainly used to connect components to form surface manifolds. Forged from high strength alloy steel, Jereh integral fittings have gone through advanced heat treatment and strict quality control before delivery. Jereh integral fittings adopt union or thread connection. Jereh integral fittings are available in many types such as tees, laterals, wyes, long radius elbows, elbows, crosses, adapters and plug unions. Customized design is also available.

Description

Features

Strengthened intersections and inner walls easily-eroded, extending service life.
•Fillet design at the intersections reduces stress concentration.


Specifications

Rated Working Pressure 69.0MPa~138.0MPa(10,000psi~20,000psi)
Nominal Size 1″, 2″, 3″, 4″
Temperature Rating -29℃~121℃(PU), -46℃~121℃ (LU) -20℉~250℉ (PU),-50℉~250℉(LU)
Service Standard, Sour Gas
Application Fracturing, Cementing, Acidizing, Testing Lines

Photo Gallery

Data Download
