Plug Valves

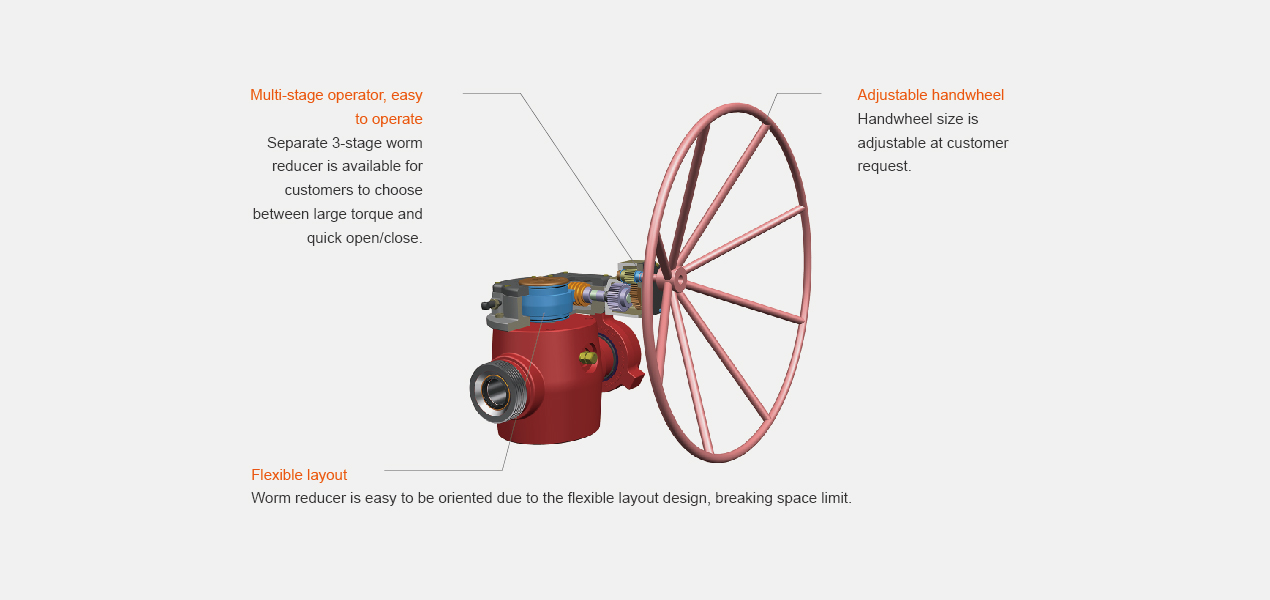

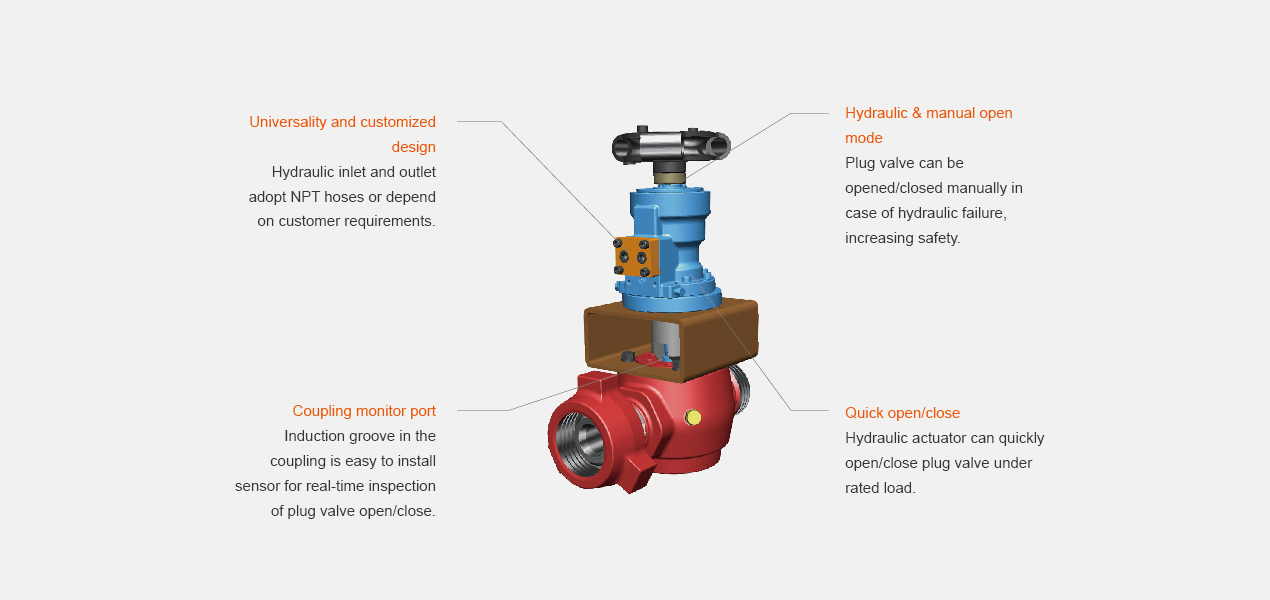

Plug Valve is an important high pressure part for well service to allow and stop flow by plug rotation. Jereh plug valves are made from premium alloy steel, with special coating and heat treating process which greatly improves sealing capabilities, anti-abrasive and corrosive resistance. 5 basic types (manual, hydraulic, electric, handwheel and manual & hydraulic actuators) are available to meet various needs applicable to different services.

Description

Features

Special tool kit and repair kit are available for inline and quick maintenance.

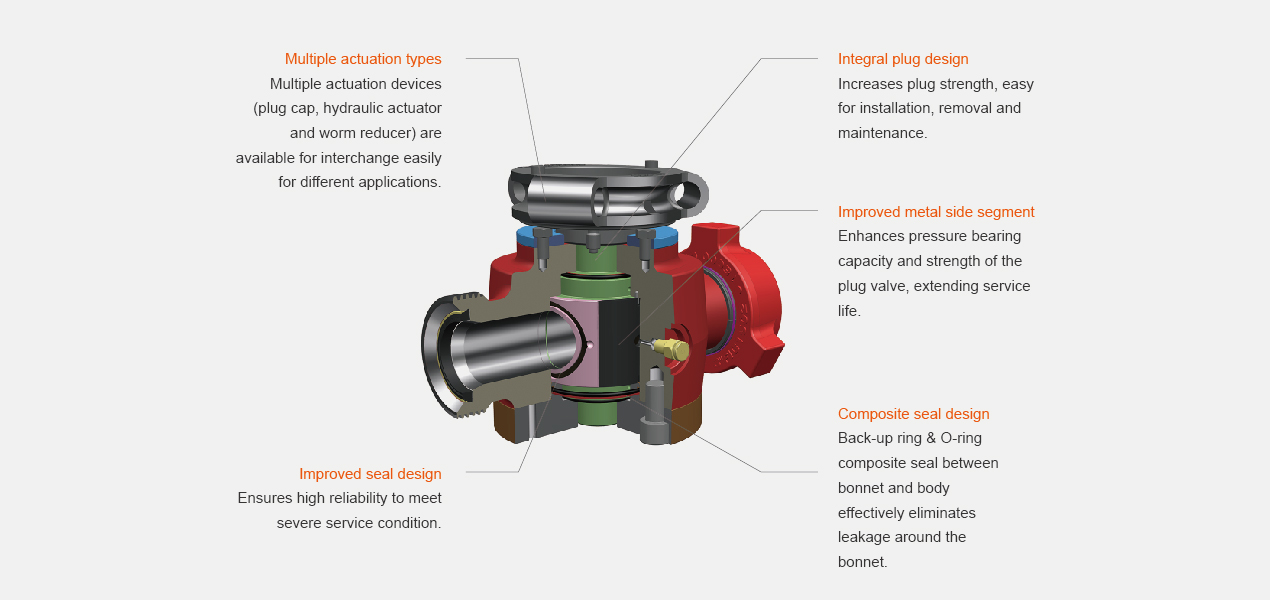

Special seal structure and sealing material ensure sealing reliability.
User-friendly designs of obvious open/close and limit signs.
Special coating technology on plug surface delivers excellent wear and corrosion resistance.
•Low open/close torque enables easy and quick operation.



Specifications

Rated Working Pressure 69.0MPa~138.0MPa(10,000psi~20,000psi)
Nominal Size 1″, 1″×2″, 1 1/2″, 2″, 2″×3″, 3″, 4″
Temperature Rating -29℃~121℃(PU), -46℃~121℃ (LU) -20℉~250℉ (PU), -50℉~250℉(LU)
Service Standard, Sour Gas
Application Fracturing, Cementing, Acidizing, Testing Lines

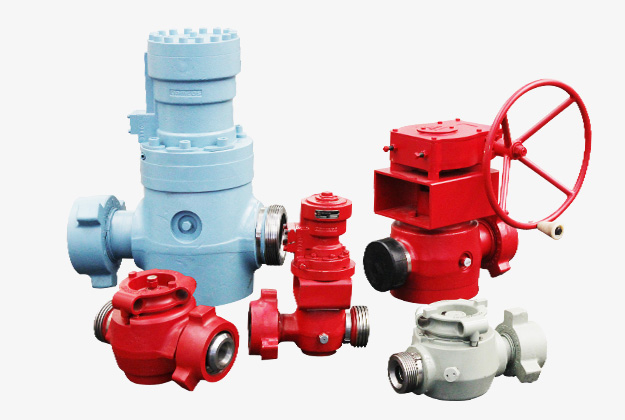

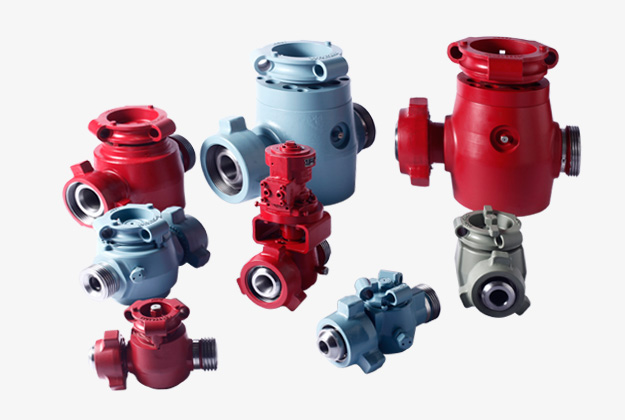

Photo Gallery
