1. Product Introduction

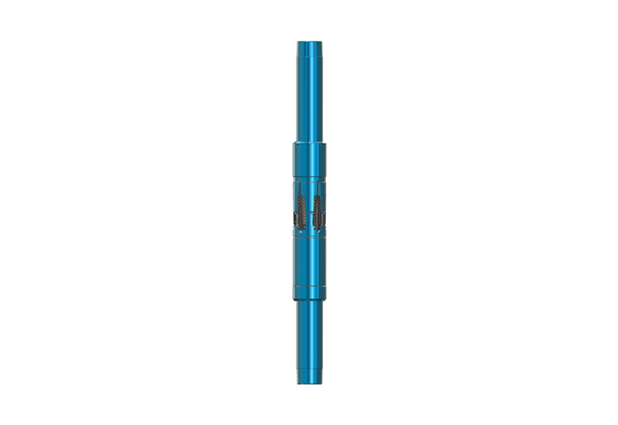

The GH series Liner Hanger series is capable of hanging very heavy liners. There is no welding in the body. Compared to the cone liner hanger, it dramatically increased its hanging capacity. Loads transfer circumferentially into the slip seat along a circle, rather than radially inward to the mandrel as the liner weight is hung. High load stresses on the mandrel beneath the slips are avoided, preventing collapse of the hanger body under heavy loading..
2. Product Features
Non-welded construction.
Extremely high hanging capacity.
Circulation will not be reduced after setting.
There is larger contact area between the slip and the casing after setting, which allows for more reliable hanging capacity

3.Specifications

Liner Hanger Size (Casing x Liner ) in	Casing Weight		Maximum OD
	lb/ft	kg/m	in	mm
5"x 3-1/2"	11.5-15	17.15-22.37	4.24	107.7
	18	26.84	4.12	104.65
5-1/2"x 3-1/2"	14-23	20.87-34.30	4.5	114.3
	26-29.7	38.77-44.29	4.24	107.7
	32.3	48.16	4.12	104.64
5-1/2";x 4";	14-17	20.87-25.35	4.732	120.19
	20	29.82	4.618	117.29
5-3/4"x4"	18	26.84	4.94	125.48
7"x 4-1/2"	20-35	29.83-52.20	5.819	147.8
	35-41	52.20-61.14	5.625	142.88
	35-42.7	52.20-63.68	5.56	141.22
7"x5"	17-26	25.35-38.77	6.106	155.09
	26-32	38.77-47.72	5.924	150.46
	32-35	47.72-52.20	5.82	147.83
	35-38	52.20-56.67	5.775	146.68
	38-41	56.67-61.14	5.675	144.15
7-5/8"x 5"	24-33.7	35.79-50.25	6.595	167.51
	29.7-39	44.29-58.16	6.455	163.95
	42.8-45.3	63.83-67.55	6.275	159.38
	47.1	70.24	6.215	157.86
7-5/8"x 5-1/2"	24-33.7	35.79-50.25	6.595	167.51
	29.7-39	44.29-58.16	6.455	163.95
	42.8-45.3	63.83-67.55	6.275	159.38
	47.1	70.24	6.215	157.86
9-5/8"x 5"	40-53.5	59.65-79.78	8.334	211.68
9-5/8"x 5-1/2"	40-53.5	59.65-79.78	8.334	211.68
9-5/8"x 7"	40-53.5	59.65-79.78	8.334	211.68
	43.5-58.4	64.87-87.09	8.234	209.14
9-5/8"x7-5/"	32.3-40	48.17-59.65	8.634	219.3
	43.5-47	64.87-70.09	8.48	215.39
	47-53.5	70.09-79.78	8.359	212.32
10-3/4"x 7"	32.8-85.3	48.91-127.21	8.955	227.45
10-3/4"x7-5/8"	32.8-55.5	48.91-82.77	9.46	240.28
	51-73.2	76.06-109.16	9.152	232.46
11-3/4"x 9-5/8"	42-54	62.63-80.53	10.679	271.24
	54-60	80.53-89.48	10.571	268.5
	60-66.7	89.48-99.47	10.475	266.07
	71	105.88	10.41	264.41
13-3/8"x 9-5/8"	54.5-72	81.28-107.37	12.14	308.36
	48-98	71.58-146.15	11.718	297.63
13-3/8"x 9-7/8"	48-80.7	71.58-120.35	12.05	306.07
13-3/8"x10-3/4"	48 -72	71.58-107.37	12.146	308.51
16"x13-3/8"	75-84	111.85-125.27	14.7	373.38
	84-109	125.27-162.55	14.375	365.13
18-5/8"x 16"	87.5	130.49	17.4	441.96
20"x 13-3/8"	94-169	140.18-252.03	18.053	458.55
20"x 16"	131-169	195.36-252.03	17.5	444.5
	163-187	243.08-278.87	17.4	441.96
