Crane Series

Deck cranes are lifting devices mounted on the decks of offshore platforms or vessels. These cranes are designed for hoisting, slewing, and luffing and are primarily used for offshore cargo handling, replenishment, and the deployment and recovery of subsea operation equipment.

Description

Specifications

Photo Gallery

Data Download

Description

Features

• Smart control system with one-touch fixed-length retraction and extension.

• Multiple operational modes including active position compensation and tension compensation.

• Equipped with remote fault diagnosis and alarm functions.

• Includes MOPS (Manual Overload Protection System) and AOPS (Automatic Overload Protection System) for safety.

• Supports local, remote, and wireless remote control options.

Specifications

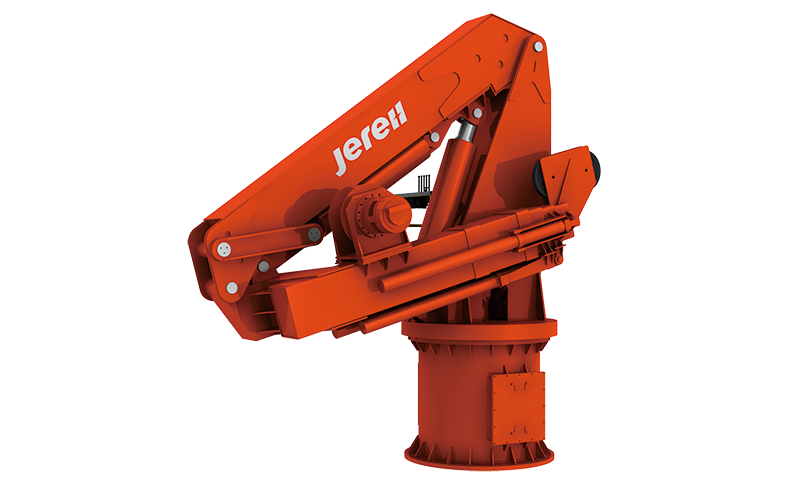

Folding Telescopic Crane

Model ZSD-SWL 1 ZSD-SWL 2 ZSD-SWL 3 ZSD-SWL 5

Safe Working Load

1 t@10 m

2 t@12 m

3 t@14 m

5 t@15 m

Drive Type

Hydraulic drive

Lifting Speed

24 m/min

Constant Tension Function

Optional

Rotation Speed

1 r/min

Certification

DNV/ABS/CCS

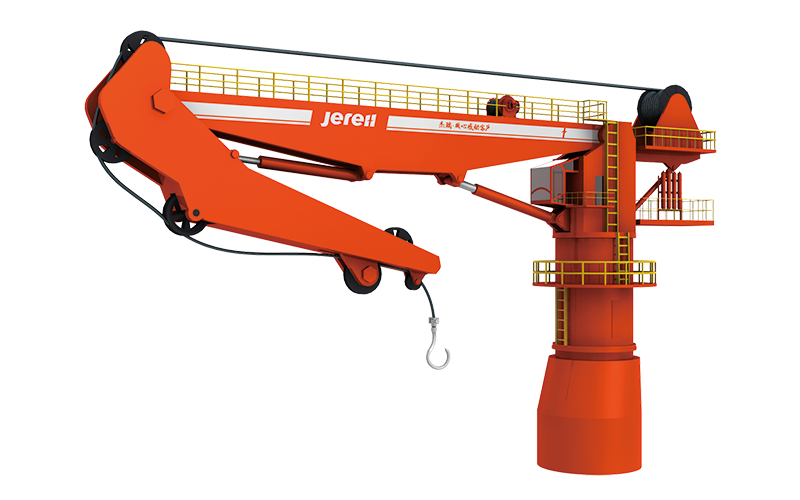

Knuckle Boom Crane



Model ZBD-SWL 10 ZBD-SWL 20 ZBD-SWL 50 ZBD-SWL 100

Safe Working Load

10 t@20 m

20t@30 m

50 t@35 m

100 t@40 m

Drive Type

Hydraulic drive

Lifting Speed

24 m/min

Constant Tension Function

Optional

Wave Compensation Function

Optional

Rotation Speed

1 r/min

0.8 r/min

0.8 r/min

0.6 r/min

Certification

DNV/ABS/CCS


Linear Compensation Lifting Unit

Item Parameter

Safe Working Load

100 t

Applicable Sea Conditions Sea State 6



Position Compensation Accuracy

90%

Tension Compensation Accuracy

90%

Dimensions (L×W×H)

7,200×2,500×2,550 mm

Weight

45 t

Operating Mode

Locking Pin, Quick Lifting, Passive

Compensation, Active Position Compensation,

Active Tension Compensation
