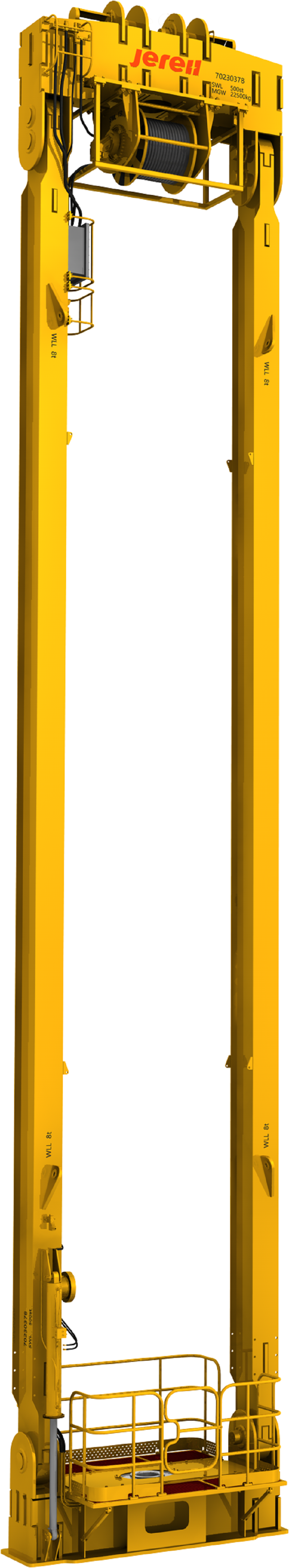

Coiled Tubing Lifting Frame

The Coiled Tubing Lifting Frame, also known as the tension frame, is designed for use in semi-submersible ships or drilling ships. Its upper part is connected to the top drive system, and the lower part is connected to the production test tree or wellhead assembly, which has the role of lifting and carrying the weight of the standpipe system. The frame is equipped with an injector platform, which is convenient for the injector installation and removal from the wellhead, providing a safe working space for coiled tubing operations and greatly improving production efficiency.

Description

The Coiled Tubing Lifting Frame, also known as thetension frame, is designed for use in semi-submersible ships or drilling ships.Its upper part is connected to the top drive system, and the lower part isconnected to the production test tree or wellhead assembly, which has the roleof lifting and carrying the weight of the standpipe system. The frame isequipped with an injector platform, which is convenient for the injectorinstallation and removal from the wellhead, providing a safe working space forcoiled tubing operations and greatly improving production efficiency.



Features

• The connection with the top drive system can be customized according tothe onsite working space such as lifting pup joint or single-arm lifting ring.

• The lower beam can be flipped for easy installation and locking of theproduction test tree.

• The integrated solutions can be provided according to on-site installationconditions.

• Certificate of approval from DNV/BV/CCS.

• Lightweight structure design, meeting GRA (Global Riser Analysis)requirements.


Specifications

Technical Parameters
Item Parameter
Product Grade PSL 1
Design Standard API 8C
Dimensions (L x W x H) 18,000×3,300×1,660 mm
Inner Working Space 15,000×2,400 mm
Weight 25 t
Lifting Capacity 455 t
Safety Working Load of Main Winch 15 t
Explosion-proof Zone IECEx Zone 1
Test Tree Size Customized

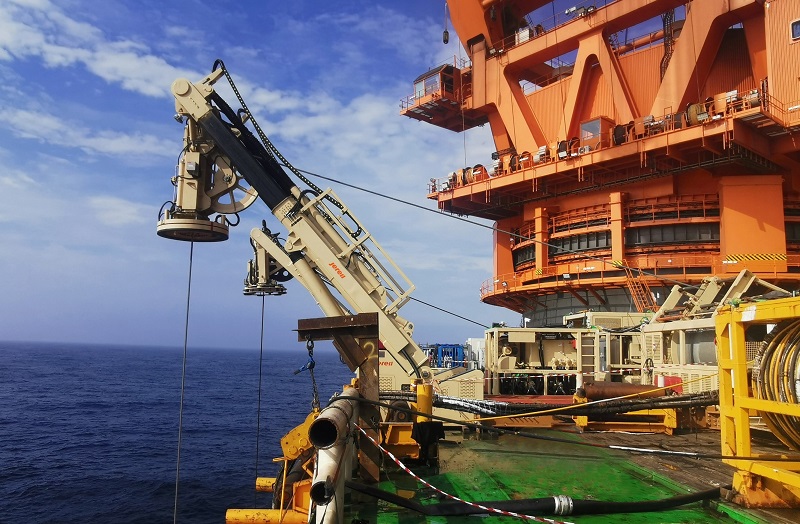

Photo Gallery
