Monkey Board Pipe Handling Manipulator (Workover Rig)
⊙Conform to API 4F Specification.
⊙One-key automatic control; multiple interlock ensures safety.
⊙Visualized monitor system manages the whole operation.
⊙Unmanned operation, safe and reliable.
⊙Lightweight and modular design enables high compatibility with the existing monkey board.
Monkey Board Pipe Handling Manipulator (Drilling Rig)
⊙Conform to API 4F Specification.
⊙One-key automatic control; multiple interlock ensures safety.
⊙Visualized monitor system manages the whole operation.
⊙Unmanned operation, safe and reliable.
⊙Capable of being raised, lowered and transported on the rig as whole.
⊙Lightweight and modular design enables high compatibility with the existing monkey board.
Monkey Board Pipe Handling Manipulator (Hanging)
⊙Conform to API 4F Specification.
⊙Available to be raised on the rig as a whole to unnecessitate installation and removal at height.
⊙Manual and automatic control modes can switch at any time; multiple interlock ensures safety.
⊙Excellent capability eliminates the need of the drill floor pipe handling manipulator.
⊙Unmanned operation, safe and reliable.
⊙Visualized monitor system manages the whole operation.
⊙Lightweight and modular design enables interchangeability with the existing monkey board.
Drill Floor Pipe Handling Manipulator (Push-support)
⊙Handle stand by cooperating with the monkey board pipe handling system, reducing labor intensity and guaranteeing operational safety.
⊙Capable of positioning wellhead, mouse hole and setback automatically and memorizing the location during operation.
⊙Manual and automatic control modes can switch at any time; multiple interlock ensures safety.
⊙Quick and convenient rig-up, rig-down and transportation.
Power Catwalk (Drilling Rig)
⊙Automatic transfer of the drilling tools between the ground and floor reduces labor intensity and improves efficiency and safety.
⊙Dual-operation mode enables free switch between manual and automatic operation.
⊙The control system features multiple interlock protection.
⊙Capable of transferring four drill pipes one time.
⊙Highly compatible with the existing rig, reducing the modification cost.

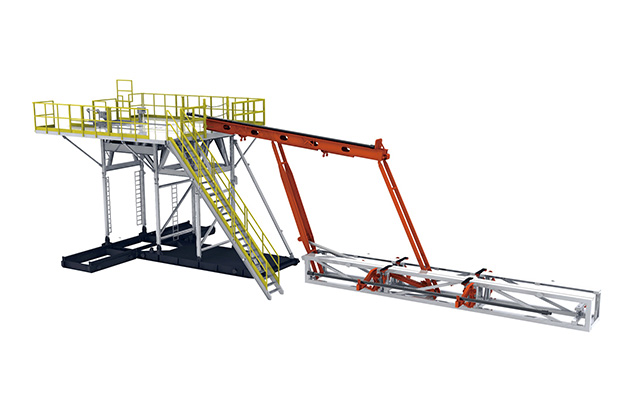

Power Catwalk (Workover Rig)
⊙Automatic transfer of the drilling tools between the ground and floor reduces labor intensity and improves efficiency and safety.
⊙Intelligent electro-hydraulic control system is integrated with the functions of study record, semi-automatic operation and manual operation.
⊙Capable of quickly lifting and lowering drill pipes, improving operational efficiency.
⊙The lifting height and extension range are available to be adjusted as per wellhead height and the well site arrangement.
⊙Optional one-key control helps realize automatic operation, more convenient.
⊙Optional remote control and manual control.
Automated Power Tong (Workover Rig)
⊙Substitute the manual power tong, safer and more efficient.
⊙Automatic control realizes automatic makeup and breakout.
⊙Available for use with the pipe handling manipulators or separately.
⊙Tailored design is available to help customers upgrade the existing power tong to lower the cost.
Automated Workover Pipe Handling System
⊙Height adjustable; platform available to be leveled automatically.
⊙Self-propelled to eliminate the use of a crane.
⊙Available for local control, wired control and wireless control.
⊙Small footprint.
⊙Integrated with pipe measuring system instead of manual measuring.
⊙Efficiency is improved by 10% compared with the manual operation.
