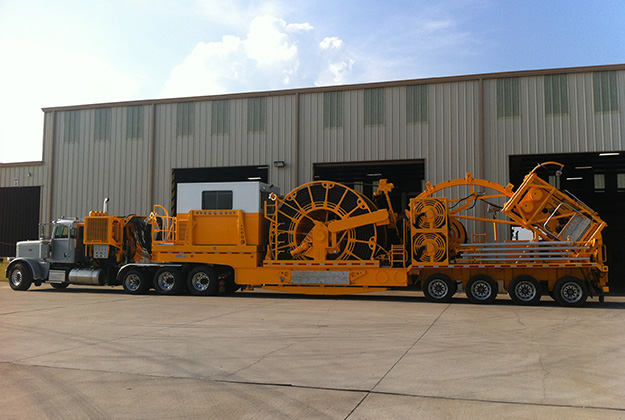

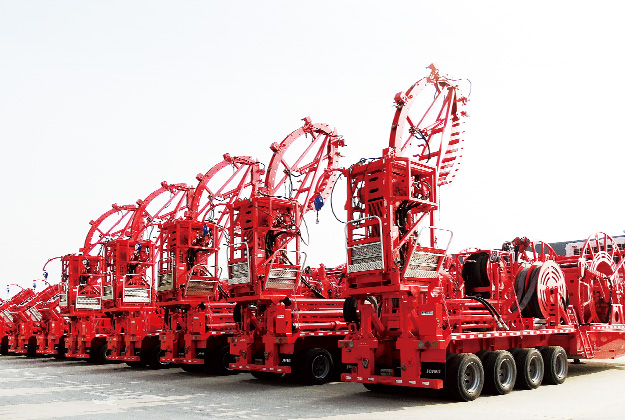

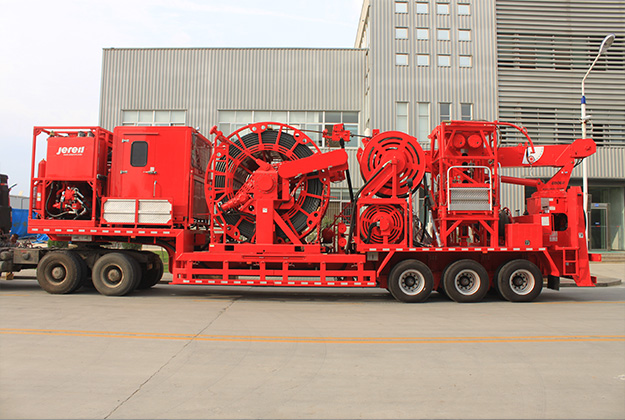

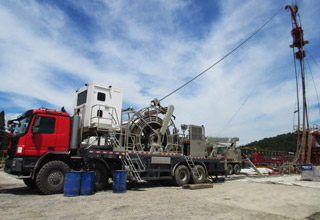

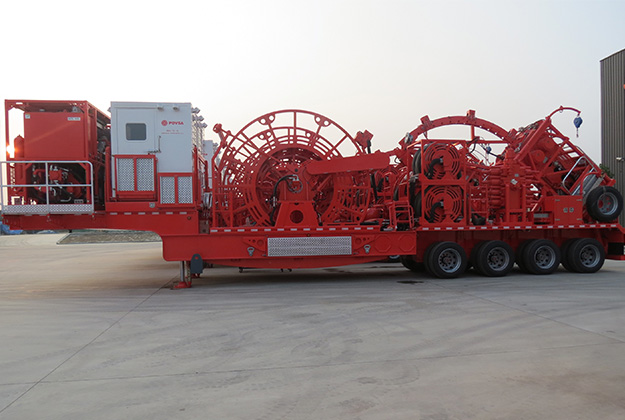

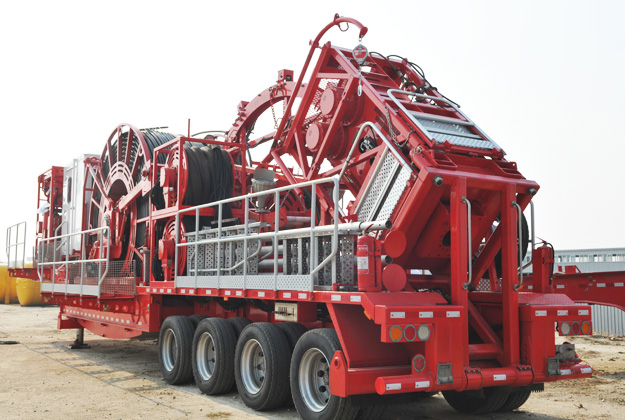

Trailer Mounted Coiled Tubing Unit

Description

Specifications

Photo Gallery

Data Download

⊙ Carrier with frame beam, double webs and reinforced structure permits higher load capacity;

⊙ Dropped chassis frame allows reel to carry tubings of large diameter (≥2”); quick in drum design makes reel change safe and simple;

⊙ BOP backup system to meet the requirements in case two BOPs are needed;

⊙ Ports for connecting with the yard spooler and tubing blower designed extending equipment functions;

⊙ Hydraulic tubes are well routed for convenient inspection and maintenance of hydraulic system.

Model	LGT630	LGT450	LGT360	LGT270	LGT180
Power Source	Tractor Engine / Deck Power Pack
Tubing Reel Model	LGGT 174-95-124	LGGT 150-78-78	LGGT 150-78-78	LGGT 120-72-78	LGGT 110-72-78
Tubing Reel Capacity	2 5/8"-24,600 ft (2 3/8"-28,870 ft) 2 5/8"-7,500 m (2 3/8"-8,800 m)	2"-20,670 ft (1 3/4"-25,920 ft) 2"-6,300 m (1 3/4"-7,900 m)	2"-20,670 ft (1 3/4"-25,920 ft) 2"-6,300 m (1 3/4"-7,900 m)	1 1/2"-20,670 ft (1 3/4"-14,100 ft) 1 1/2"-6,300 m (1 3/4"-4,300 m)	1 1/4"-22,000 ft (1 1/2"-14,440 ft) 1 1/4"-6,700 m (1 1/2"-4,400 m)
Injector Model	ZRT-140K	ZRT-100K	ZRT-80K	ZRT-60K	ZRT-40K
Continuous Pulling Capacity	140,000 lb (63,500 kg)	100,000 lb (45,000 kg)	80,000 lb (36,000 kg)	60,000 lb (27,000 kg)	40,000 lb (18,000 kg)
Continuous Snubbing Capacity	60,000 lb (27,000 kg)	50,000 lb (22,500 kg)	40,000 lb (18,000 kg)	30,000 lb (13,600 kg)	20,000 lb (9,000 kg)
Well Control Equipment	3 1/16" / 4 1/16" / 5 1/8"
Max. Working Pressure	10,000 psi (69 MPa) / 15,000 psi (103.5 MPa)
Crane (Optional)	-			18 t
