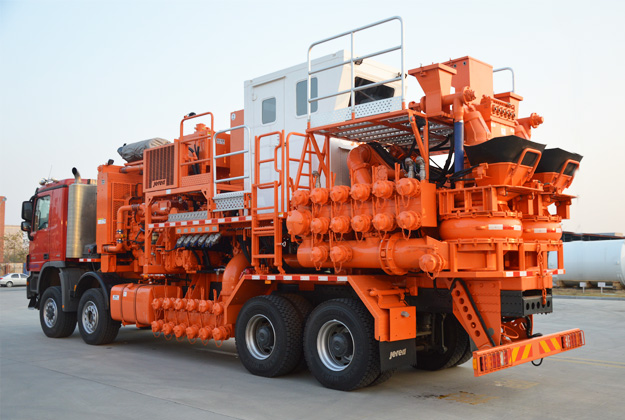

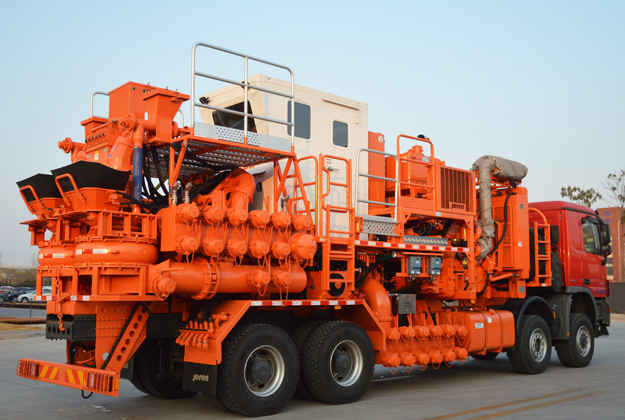

Sand Blender

The low pressure manifold with double suction & double discharge and bypass function provides convenience for field operation, and the 3D simulation optimized design ensures the stable fluid supply;

Description

Features

⊙ Applicable for all domestic road conditions with optimized structure and reasonable load distribution;


⊙ Transversal arrangement of single deck engine provides ample room for power system maintenance;


⊙ Full hydraulic closed drive system ensures high system efficiency and control precision, which can control the small displacement operation accurately;


⊙ The advanced “Tank in Tank” structure ensures the optimal sand-fluid blending effect;


⊙ The low pressure manifold with double suction & double discharge and bypass function provides convenience for field operation, and the 3D simulation optimized design ensures the stable fluid supply;


⊙ Guided waves radar level meter ensures the stable and reliable level control;


⊙ The augers adopt a new technology, ensuring high conveying accuracy and precise control;


⊙ Automatic control of density, chemical additive and liquid level ensures high automation and easy operation;


⊙ 240bbl closed-type sand blender, with dual blending systems as standby, realizes maximum displacement in the world.


Specifications

Model 75 bbl 100 bbl 130 bbl 240 bbl
Carrier Truck / Trailer / Skid
Chassis Mercedes-Benz / Sinotruck
Engine CAT DDC / CAT DDC / CUMMINS DDC
Suction Centrifugal Pump 10×8 12×12 12×12 -
Discharge Centrifugal Pump 10×8 12×10 14×12 Closed-loop Sand Pump
Auger 12″ (2) 12″ (2) 12″ (2)+8″ (1) -
Liquid Additive System Qty. 6 or more 6 or more 6 or more 6 or more
Dry Additive System Qty. 2 2 2 2
Sand Blending Tub Capacity 9.5 bbl (1.5 m³) 9.5 bbl (1.5 m³) 11.3 bbl (1.8 m³) -
Rated Sand Conveying Rate

17,637 lb/mi

(8,000 kg/min)

22,046 lb/min

(10,000 kg/min)

22,046 lb/min

(10,000 kg/min)

-
Max. Water Discharge Rate

75 bbl/min

(12 m³/min)

100 bbl/min

(16 m³/min)

130 bbl/min

(20 m³/min)

240 bbl/min

(38 m³/min)

Max. Fluid Density

20 lb/ga

(2.4 g/cm³)

20 lb/gal

(2.4 g/cm³)

20 lb/gal

(2.4 g/cm³)

20 lb/gal

(2.4 g/cm³)

Control Mode Auto / Manual / Remote
