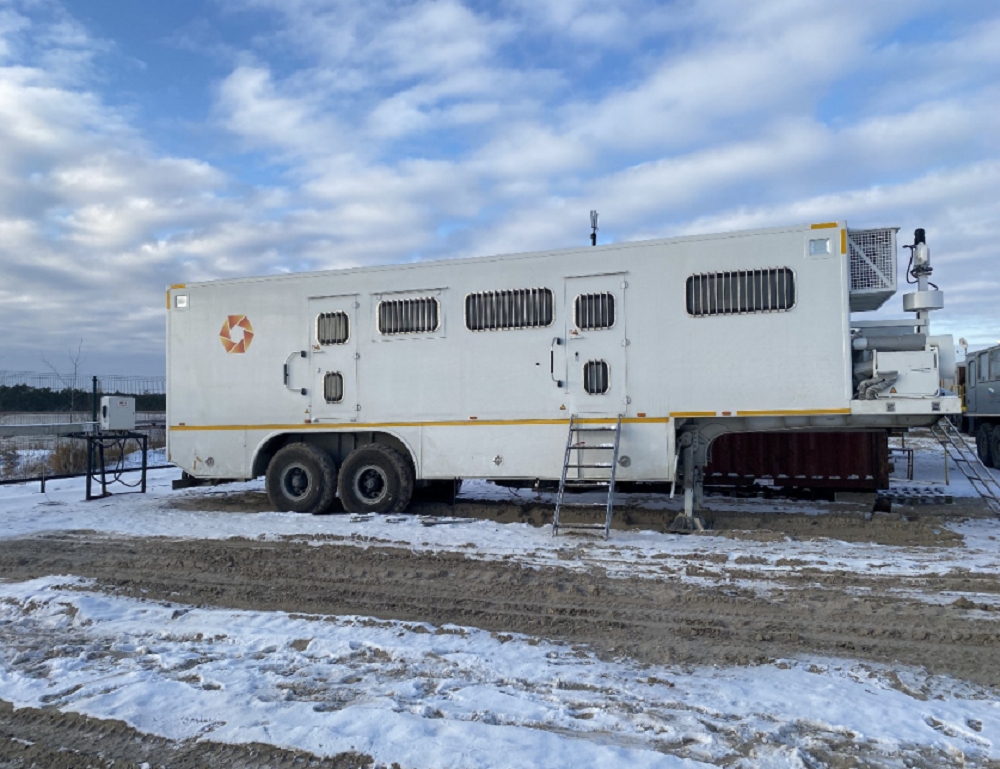

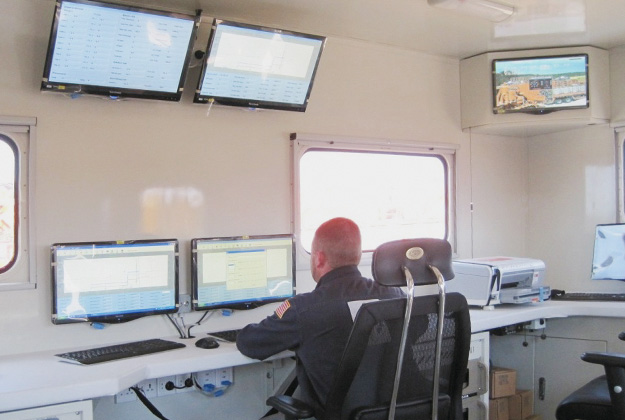

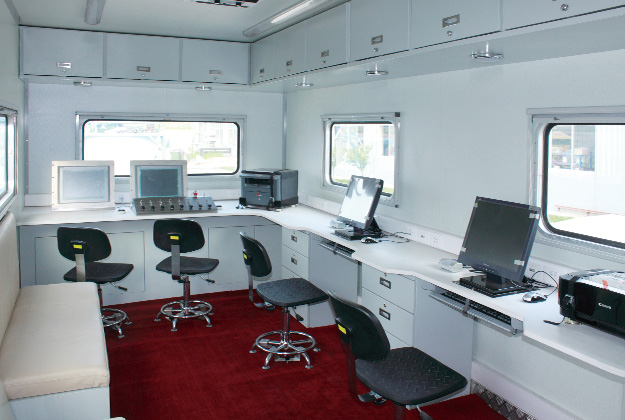

Data Van

TMR Ethernet framework collects the operation data of the fracturing unit, sand blender, sand conveyor, hydration unit, nitrogen pumping unit and coiled tubing unit and the sensor signal directly;

Description

Features

⊙ TMR Ethernet framework collects the operation data of the fracturing unit, sand blender, sand conveyor, hydration unit, nitrogen pumping unit and coiled tubing unit and the sensor signal directly;


⊙ Data acquisition software distributes the acquisition channel flexibly, satisfying the fracturing, cementing and coiled tubing operation. Real-time communication with third party analysis software can monitor the job conditions remotely;


⊙ Wireless portable data acquisition box and hand-held terminal are all accessible for operators to know the on-site job conditions;


⊙ Through the remote data transmission system, it can realize the remote monitoring and fault diagnosis between the well site and the base.


Specifications

Model 08-1 16-2 24-2

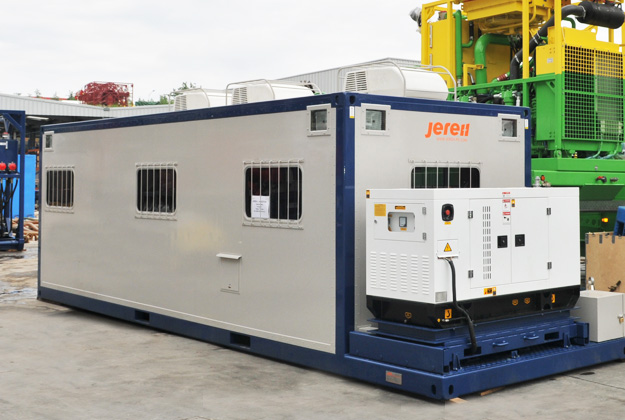

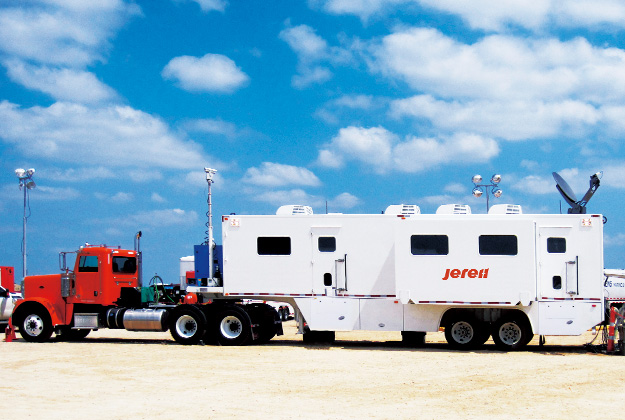

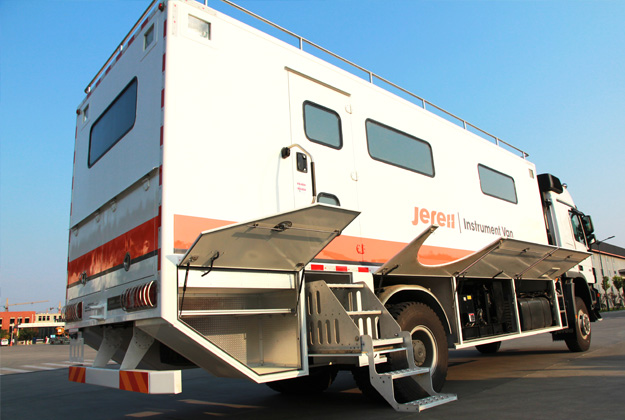

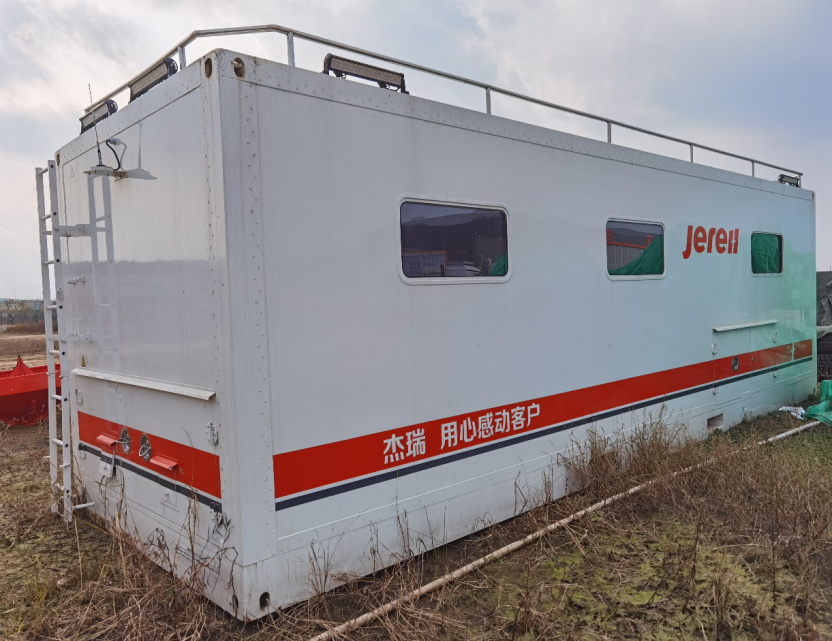

Carrier Truck / Trailer / Skid

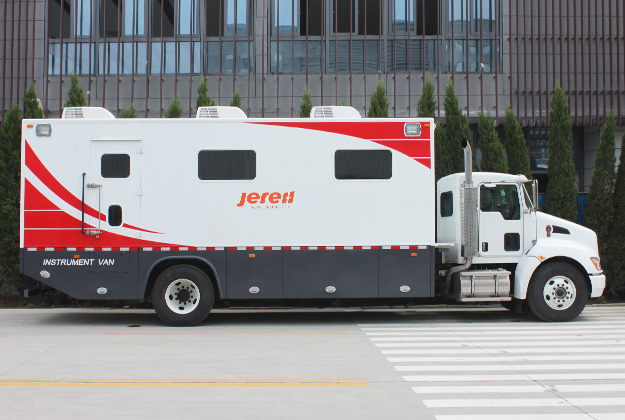

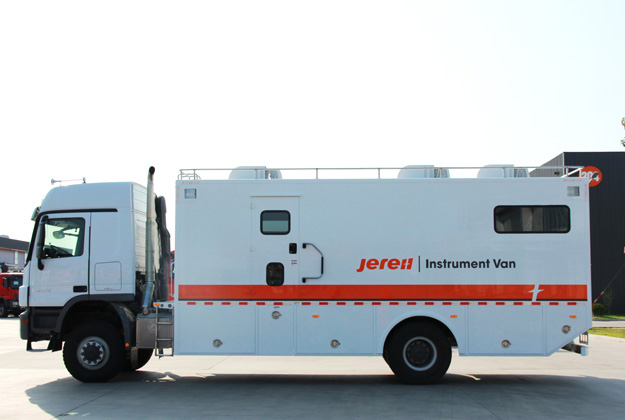

Truck Chassis Mercedes-Benz / MAN / Sinotruck / BEIBEN
Qty. of Fracturing Unit Controlled 8 16 24
Qty. of Sand Blender Monitored 1 2 2
Generator 110/220 V AC, 50/60 Hz,16 kW, 20 kW (Diesel Generator Set), 15 kW (Hydraulic Generator Set)
UPS 1 kVA / 2 kVA / 3 kVA
Data Acquisition System 2 sets
Fracturing Unit Control Terminal 1 HMI /1 IPC 2 IPCs
Sand Blender Control Terminal 1 HMI /1 IPC 1 IPC
Intercom System 12 sets
Wellsite Monitoring System 2 Cameras 2 Cameras 3 Cameras
Qty. of Air Conditioning 2 3 3
Optional Satellite Communication System, Portable Data Acquisition System, Extended radio station
