Rotary Table

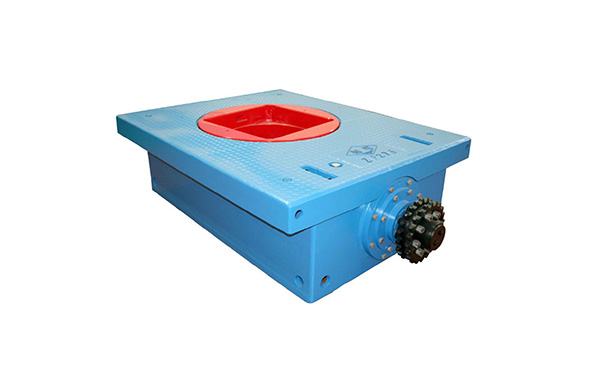

As one of important parts of drilling, ZP series of rotary tables are widely used to rotate drill equipment and hold the weight of pipe​s in well. They are designed and manufactured according to API Spec 7K.

Description

Product Details

⊙The pinion and gear are made of alloy steel.

⊙The master bushing is made from a steel casting.

⊙Pin transmission type is suitable f or AIP standard square Kelly or hexagonal Kelly roller bushing.

⊙Effective lubrication and reliable seals are provided by design.

⊙The rotary tables conform to API specification 7K.

Specifications

Model

ZP175

ZP205

ZP275

ZP375


      Max. Static load

kN

2250

3150

4500

5850

US ton

250

350

500

650


      Diameter of opening

mm

444.5

520.7

698.5

952.5

in

171/2

201/2

271/2

371/2


      Gear ratio



3.58

3.22

3.67

3.56


      Table axis to center liner Row sprocket teech

mm

1118

1353

1353

1353

in

44

531/4

531/4

531/4


      O.D

mm

1935*1280*585

2392*1475*668

2392*1670*685

2468*1810*718

in

76*50*23

90*58*26

94*66*27

97*71*28


      Weight

kg

3888

5530

6203

8026

lb

8572

12190

13680

17694
