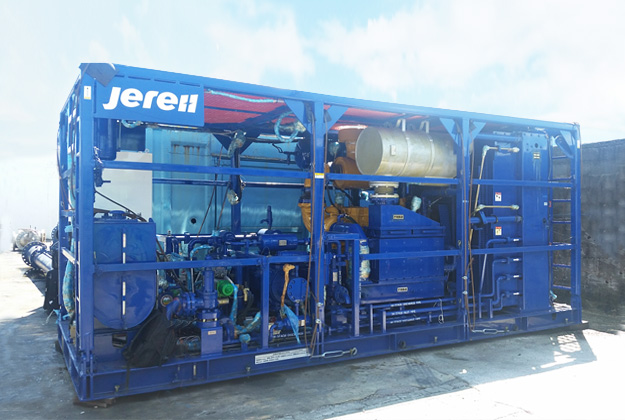

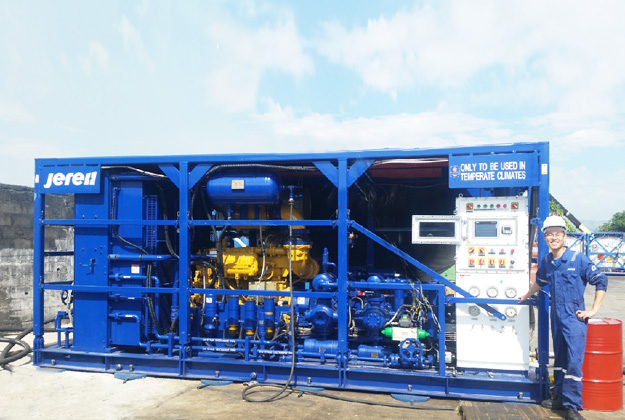

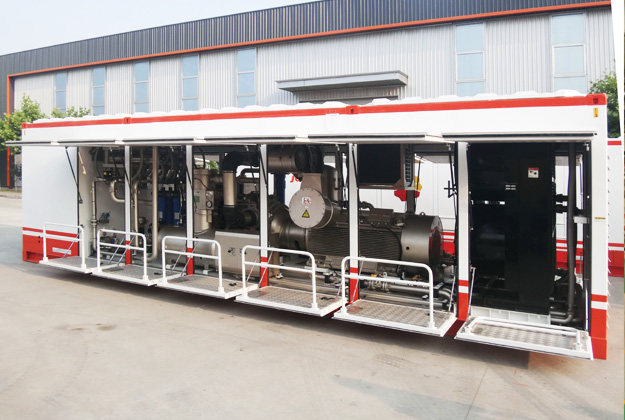

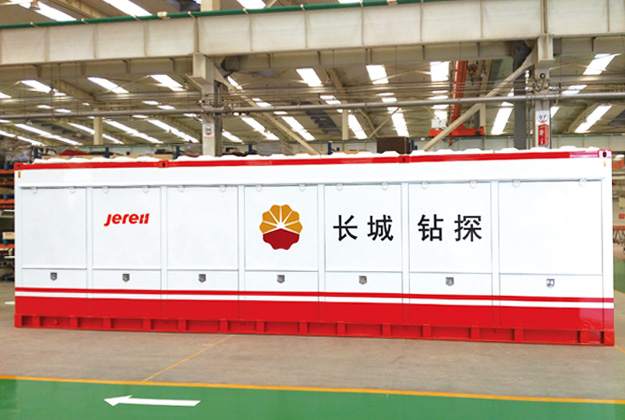

Nitrogen Generator Unit

World-renowned compressors are used, delivering small vibration, low noise, stable running and excellent weatherability;

Description

Features

⊙ World-renowned compressors are used, delivering small vibration, low noise, stable running and excellent weatherability;


⊙ Advanced multi-stage gas treatment technology and drainage override system enhance and stabilize the treatment effect and extend the membrane life;


⊙ Hollow fiber membrane technology and Jereh’s membrane stabilization technology ensure high separation rate and stable output, fit for the jobs in various conditions;


⊙ The advanced horizontal opposed multi-stage compressor and analysis on pulsation and torsional vibration offer steady running, reliable boosting and long continuous operating time;


⊙ JNGS full-automatic monitoring system enables real-time monitoring and analyzing of the working data, automatic trouble diagnosis and one-key operation.


Specifications

Model DF 600 DF 900 DF 1200 DF 1500 DF 1800 DF 3000 DF 3600
Discharge Rate 21,200 SCFH (600 Nm³/h) 31,800 SCFH (900 Nm³/h) 42,400 SCFH ( 1,200 Nm³/h) 52,900 SCFH (1,500 Nm³/h) 63,600 SCFH (1800 Nm³/h) 106,000 SCFH (3000 Nm³/h) 127,200 SCFH (3600 Nm³/h)
N2 Pressure 145~7,250 psi (1~50 Mpa)(optional) 145~5,076 psi (1~35 Mpa) (optional)
N2 Purity 95% (90~99.9% adjustable)
Drive Engine / Electric Motor
