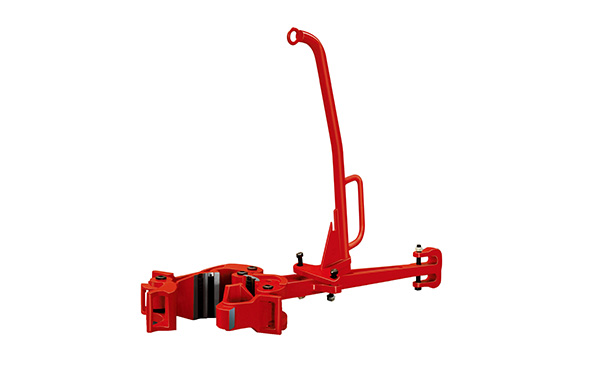

Manual Tong

Manual tong is an essential tool in oil drilling operation to fasten or remove the screws of drill pipe and casing joint or coupling. The handling size of manual tong I can be adjusted by changing latch lug jaws and latch steps.

Description

Specifications

Photo Gallery

Data Download

Description

Product Details

⊙Manual tong with API7K standard.

⊙Manual tong is an essential tool in oil drilling operation to fasten or remove the screws of drill pipe and casing joint or coupling.

⊙The handling size of manual tong I can be adjusted by changing latch lug jaws and latch steps.

Specifications

Model Size Range Tonque Rated
SB 3.1/2~13.3/8 3.1/2~9 75KN.m
      9~11.3/4 55KN.m
      12.3/4 ~13.3/8 40KN.m
DB 3.1/2~17 3.1/2~11.1/4 90KN.m
      11.3/4~17 55KN.m
SDD 4~17 4~12 135KN.m
      12~15100KN.m
      15.3/4 135KN.m
      16 ~17 80KN.m
LF 2.3/8~7 22KN.m
C 2.3/8~10.3/4 48KN.m
WWC 2.3/8~10.3/4 2.3/8~5.3/4 27KN.m
      5.3/4~8.5/820KN.m
      9.5/8 ~10.3/4 14KN.m
WWB 2.3/8~10.3/4 2.3/8~8.5/8 48KN.m
      9~10.3/4 35KN.m
AAX 2.7/8~13.3/8 2.7/8~8.5/8 75KN.m
      9~13.3/8 40KN.m
Extended casing tong 13.3/8~36 13.3/8~30 35KN.m
25.1/2~36 55KN.m
