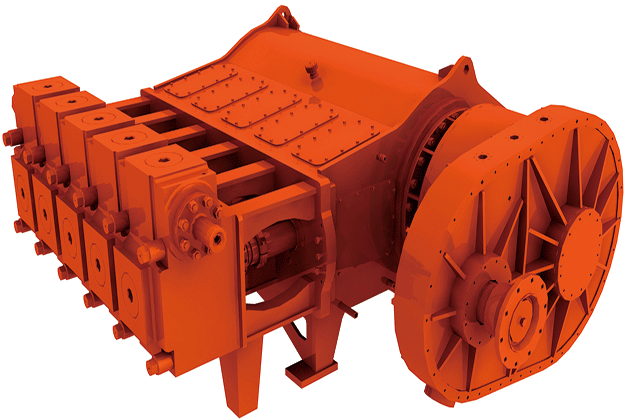

JR5000QP Quintuplex Plunger Pump

JR5000QP pump has been successfully applied on Jereh Apollo frac pumper. Its horsepower is equal to that of two JR2500Q pumps.

Description

JR5000QP pump has been successfully applied on Jereh Apollo frac pumper. Its horsepower is equal to that of two JR2500Q pumps. High pressure and large displacement make it require fewer units and footprint at site, reducing development cost. JR5000QP pump is suitable for continuous operations, leading shale gas development.

Specifications

Rated Brake Horsepower: 5,000 hp Gear Ratio: 5.696:1
Maximum Rod Load:

270,000 lbf

Overall Dimension: 96.18×110.55×44.13 in
Stroke Length: 10 in Weight: 27,557 lbs

Plunger Dia. Disp. Displacement at Pump Strokes per Minute
in(mm) gal/rev(L/rev) 100 150 200 250 300 360
gpm(L/min) psi(MPa) gpm(L/min) psi(MPa) gpm(L/min) psi(MPa) gpm(L/min) psi(MPa) gpm(L/min) psi(MPa) gpm(L/min) psi(MPa)
4 2.72 272 20,000 408 18,904 544 14,178 680 11,343 816 9,452 979 7,877
101.6 10.3 1,029.60 137.9 1,544.40 130.4 2,059.30 97.8 2,574.10 78.2 3,088.90 65.2 3,706.70 54.3
4 1/2 3.44 344 16,976 516 14,937 689 11,203 861 8,962 1,033 7,468 1,239 6,224
114.3 13.03 1,303.10 117.1 1,954.70 103 2,606.30 77.3 3,257.80 61.8 3,909.40 51.5 4,691.30 42.9
5 4.25 425 13,751 638 12,099 850 9,074 1,063 7,259 1,275 6,049 1,530 5,041
127 16.09 1,608.80 94.8 2,413.20 83.4 3,217.60 62.6 4,022.00 50.1 4,826.40 41.7 5,791.70 34.8
5 1/2 5.14 514 11,364 771 9,999 1,029 7,499 1,286 5,999 1,543 5,000 1,851 4,166
139.7 19.47 1,946.60 78.4 2,920.00 69 3,893.30 51.7 4,866.60 41.4 5,839.90 34.5 7,007.90 28.7
6 6.12 612 9,549 918 8,402 1,224 6,301 1,530 5,041 1,836 4,201 2,203 3,501
152.4 23.17 2,316.70 65.9 3,475.00 57.9 4,633.30 43.5 5,791.70 34.8 6,950.00 29 8,340.00 24.1
6 1/2 7.18 718 8,137 1,077 7,159 1,437 5,369 1,796 4,295 2,155 3,580 2,586 2,983
165.1 27.19 2,718.90 56.1 4,078.30 49.4 5,437.70 37 6,797.20 29.6 8,156.60 24.7 9,787.90 20.6
7 8.33 833 7,016 1,250 6,173 1,666 4,630 2,083 3,704 2,499 3,086 2,999 2,572
177.8 31.53 3,153.20 48.4 4,729.90 42.6 6,306.50 31.9 7,883.10 25.5 9,459.70 21.3 11,351.70 17.7
Brake Power (hp/kW) 3,789/2,825 5,000/3,729 5,000/3,729 5,000/3,729 5,000/3,729 5,000/3,729
Input Speed (rpm) 570 854 1,139 1,424 1,709 2,051

Based on 90% ME and 100% VE- intermittent service only.
