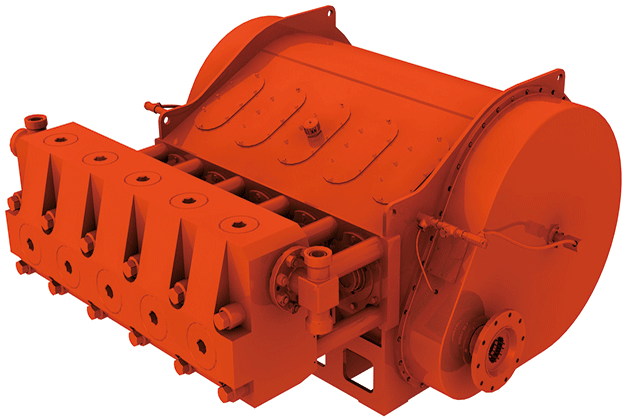

JR2500Q Quintuplex Plunger Pump

JR2500Q pump is a widely used quintuplex plunger pump for high pressure and large displacement. It is suitable for continuous fracturing operation under harsh working condition such as shale gas fracturing.

Description

JR2500Q pump is a widely used quintuplex plunger pump for high pressure and large displacement. It is suitable for continuous fracturing operation under harsh working condition such as shale gas fracturing.

Specifications

Rated Brake Horsepower: 2,500 hp Gear Ratio: 6.353:1
Maximum Rod Load: 192,325 lbf Overall Dimension: 87.29×79.27×45.90 in
Stroke Length: 8 in Weight: 16,093 lbs

Plunger Dia. Disp. Displacement at Pump Strokes per Minute

in
(mm)

gal/rev
(L/rev)

110 150 200 250 330

gpm
(L/min)

psi
(MPa)

gpm
(L/min)

psi
(MPa)

gpm
(L/min)

psi
(MPa)

gpm
(L/min)

psi
(MPa)

gpm
(L/min)

psi
(MPa)

3 1/2 1.67 183 20,000 250 15,432 333 11,574 417 9,259 550 7,015
88.9 6.31 693.7 137.9 946 106.4 1,261.30 79.8 1,576.60 63.9 2081.1 48.4
3 3/4 1.91 210 17,422 287 13,443 383 10,082 478 8,066 631 6,111
95.25 7.24 796.4 120.2 1,085.90 92.7 1,447.90 69.5 1,809.90 55.6 2,389.10 42.1
4 2.18 239 15,313 326 11,815 435 8,861 544 7,089 718 5,371
101.6 8.24 906.1 105.6 1,235.60 81.5 1,647.40 61.1 2,059.30 48.9 2,718.20 37
4 1/2 2.75 303 12,099 413 9,336 551 7,002 689 5,601 909 4,243
114.3 10.43 1,146.80 83.4 1,563.80 64.4 2,085.00 48.3 2,606.30 38.6 3,440.30 29.3
5 3.4 374 9,800 510 7,562 680 5,671 850 4,537 1,122 3,437
127 12.87 1,415.70 67.6 1,930.60 52.2 2,574.10 39.1 3,217.60 31.3 4,247.20 23.7
Brake Power (hp/kW) 2,376/1,772 2,500/1,864 2,500/1,864 2,500/1,864 2,500/1,864
Input Speed (rpm) 699 953 1,271 1,588 2,096

Based on 90% ME and 100% VE- intermittent service only.
