Mobile Gas Turbine Genset

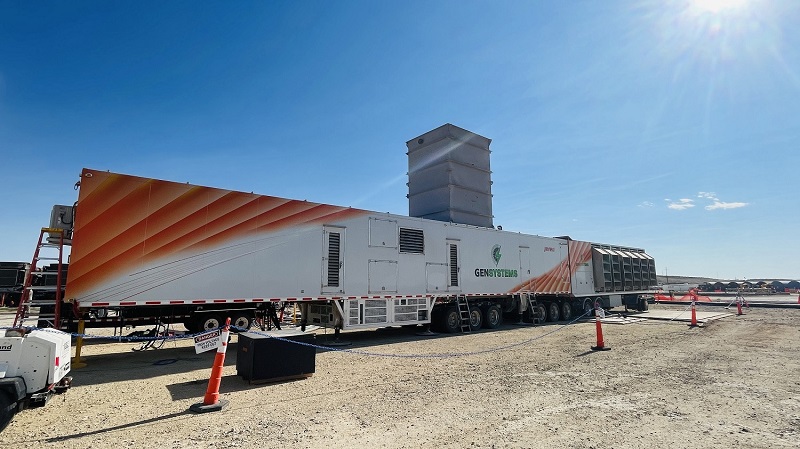

Power2Go®Mobile gas turbine generator independently developed by Jereh. Designed for rapid deployment, the units can be installed within 2-24 hours. The units offer high integration, adaptability, stability, and ease of use. Ideal for short-term, mid-scale power needs in applications such as oilfield fracturing, microgrids, grid peaking, urban emergency power, and data center.

Description

Advantages
• Modular design
Highly integrated design, with benefits of space-efficiency, easy to transport, fast deployment within 8 hours and high scalability to meet any power demands.
• High Reliability
Suited for high-power load fluctuations with excellent load acceptance and rejection performance. Dynamic response characteristics far exceed reciprocating generator sets.
• Low emissions
NOx emissions ≤ 25 ppmv 15% O2 (DLE). Maintains high power generation efficiency and low emission levels even under 50–100% load variations.
• Low noise
Noise levels as low as 85 dBA, suitable for data centers and emergency power with low-noise requirements.
• Multiple Voltage/Frequency Options
Supports 13.8 kV/12.47 kV 60 Hz power output, while also compatible with 11 kV 50 Hz output.
• Multi-mode and Grid parallel
Supports hybrid power and grid-parallel modes, compatible with various existing generator sets.
• High expandability

Can be combined with other mobile generators, distribution, substation, energy storage, and integrated control devices to meet sophisticate power needs.



Intelligent Power Solution

Primary Power Solutions for Data Center

Jereh provides data center with continuous, high-efficiency primary power or peaking power by smart power distribution and flexible dispatch across different energy resources, while leveraging efficient variable frequency drives and intelligent control systems, significantly improving energy utilization, reducing PUE, ensuring grid stability, uninterrupted operations and cost efficiency.

Backup Power Solutions for Data Center

Equipped with high-capacity, fast-response generation systems (such as gas turbine plus storage), Jereh enables seamless millisecond switching during grid failures, ensuring uninterrupted, robust power for critical data center loads and safeguarding data security and business continuity.

Oilfield Microgrid

Jereh powers remote oilfield sites with smart microgrids, combining turbines, solar, and storage for reliable, economical, and sustainable energy.

Associated Gas-To-Power

Turning flare gas into power, Jereh transforms oilfield associated gas into valuable electricity, maximizing resource use and creating extra economic value.

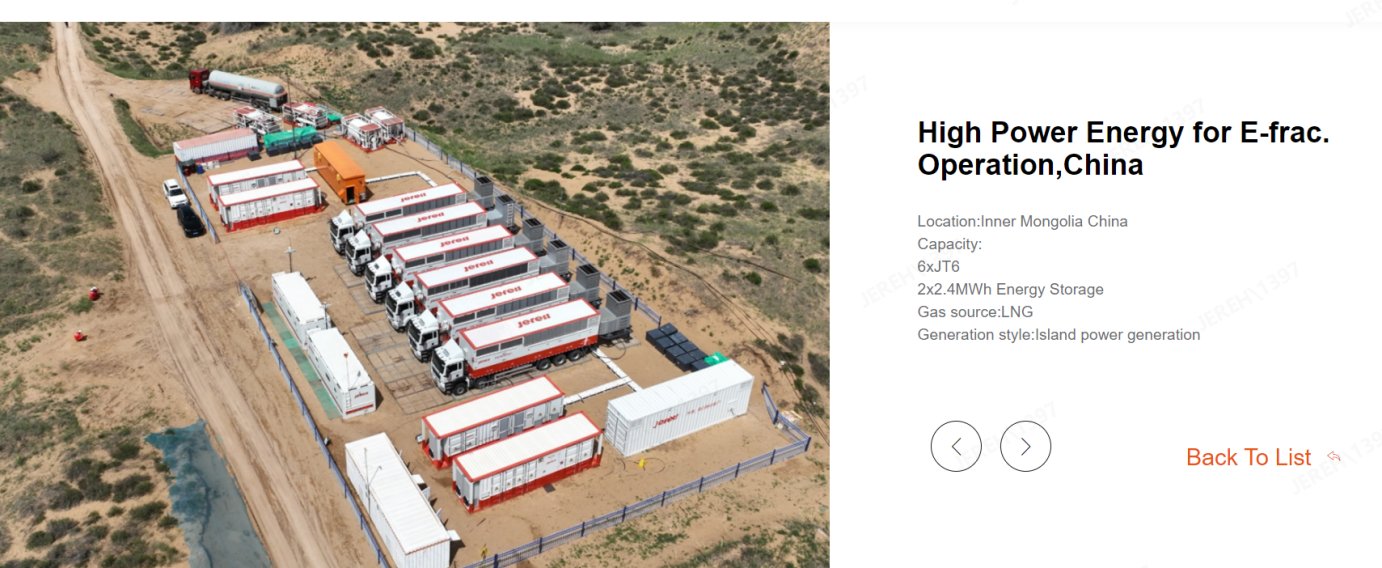

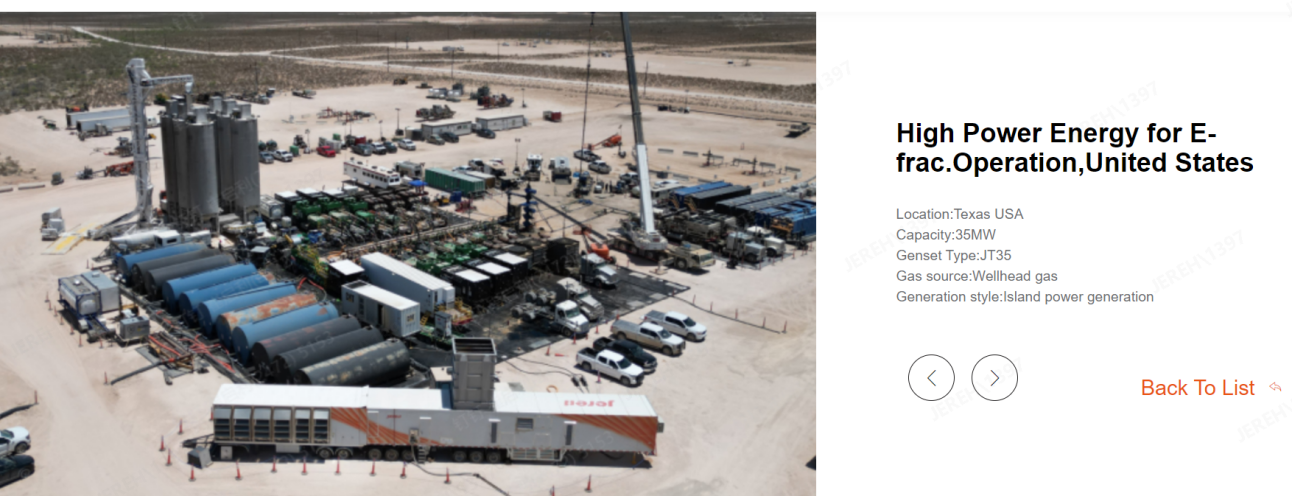

Frac Power

Jereh delivers reliable, high-power energy for electric fracturing, reducing diesel use and enhancing efficiency and environmental performance.

Drilling Power

Jereh provides clean, reliable power for drilling rigs, cutting diesel use and boosting operational efficiency and sustainability.

Specifications

Advantages

Model JT6 JT8 JT18 JT25 JT32 JT35 JT45
Power 5.8 MW 8 MW 17.2 MW 24 MW 30.2 MW 33.8 MW 42.4 MW
Fuel Type Natural Gas /Liquid Fuel/Dual-Fuel/Other Fuels
Efficiency 33.10% 34.3% 37.00% 37.50% 39% 39.50% 42%
Heat Rate 10,889 kJ/kWh 10,500 kJ/kWh 9,722 kJ/kWh 9,595 kJ/kWh 9,227 kJ/kWh 9,104 kJ/kWh 8,564 kJ/kWh
Voltage 13.8/11kV
Frequency 60/50Hz
NOx Emission ≤25 ppmv15%O₂(DLE) ≤ 15 ppmv 15%O₂ (9.9 ppm optional) 15/9 ppmv15%O₂(DLE) ≤25 ppmv15%O₂(DLE) - ≤25 ppmv15%O₂(DLE) 25 ppmv(Gas Water or Steam)

Note:

  1. The generated power is based on ISO condition, with gas fuel LHV 47.5MJ/kg.
  2. The International Organization for Standardization(ISO) has defined the following standard conditions:
    • Ambient Temperature -15℃.
    • Barometric Pressure -101.3kPa.
    • Relative Humidity-60%.
    • Inlet Exhaust Losses-None.

For detailed information, please consult Jereh's engineers.
