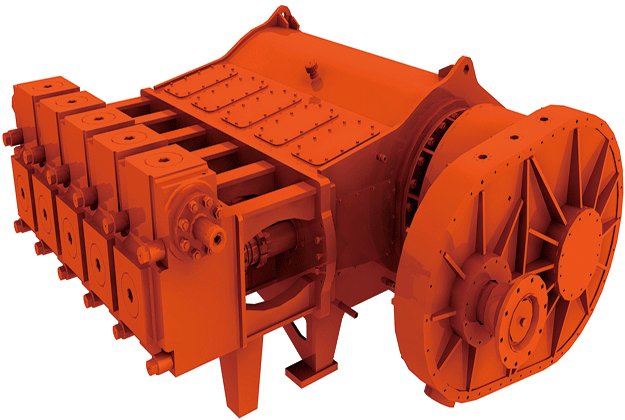

JR7000QP Quintuplex Plunger Pump

JR7000QP plunger pump can operate continuously under heavy load, which is applicable for zipper fracturing in shale gas development.

Description

Specifications

Photo Gallery

Data Download

Description

JR7000QP plunger pump can operate continuously under heavy load, which is applicable for zipper fracturing in shale gas development.

Specifications

Rated Brake Power: 7,000 hp Overall Dimensions：100.04×125.87×49.02 in
Max. Rod Load: 318,086 lbf Weight: 34,172 lbs
Stroke Length: 11 in

Plunger Dia. Disp. Displacement at Pump Strokes per Minute
in (mm) gal/rev (L/rev) 60 80 100 120 140 170
gpm (L/min) psi (MPa) gpm (L/min) psi (MPa) gpm (L/min) psi (MPa) gpm (L/min) psi (MPa) gpm (L/min) psi (MPa) gpm (L/min) psi (MPa)
4 1/2 3.79 227 20,000 303 20,000 379 20,000 454 20,000 530 20,000 644 16,774
114.3 14.33 860.1 137.9 1,146.80 137.9 1,433.40 137.9 1,720.10 137.9 2,006.80 137.9 2,436.80 115.7
5 4.68 281 16,200 374 16,200 468 16,200 561 16,200 655 16,200 795 13,587
127 17.7 1,061.80 111.7 1,415.70 111.7 1,769.70 111.7 2,123.60 111.7 2,477.60 111.7 3,008.50 93.7
5 1/2 5.66 339 13,388 453 13,388 566 13,388 679 13,388 792 13,388 962 11,229
139.7 21.41 1,284.80 92.3 1,713.10 92.3 2,141.30 92.3 2,569.60 92.3 2,997.80 92.3 3,640.20 77.4
6 6.73 404 11,250 539 11,250 673 11,250 808 11,250 942 11,250 1,144 9,435
152.4 25.48 1,529.00 77.6 2,038.70 77.6 2,548.30 77.6 3,058.00 77.6 3,567.70 77.6 4,332.20 65.1
6 1/2 7.9 474 9,586 632 9,586 790 9,586 948 9,586 1,106 9,586 1,343 8,040
165.1 29.91 1,794.50 66.1 2,392.60 66.1 2,990.80 66.1 3,588.90 66.1 4,187.10 66.1 5,084.30 55.4
Brake Power (hp/kW) 2,946/2,197 3,928/2,929 4,910/3,661 5,891/4,393 6,873/5,125 7,000/5,220
Input Speed (rpm) 738 984 1,230 1,476 1,722 2,091

Based on 90% ME and 100% VE- intermittent service only.
