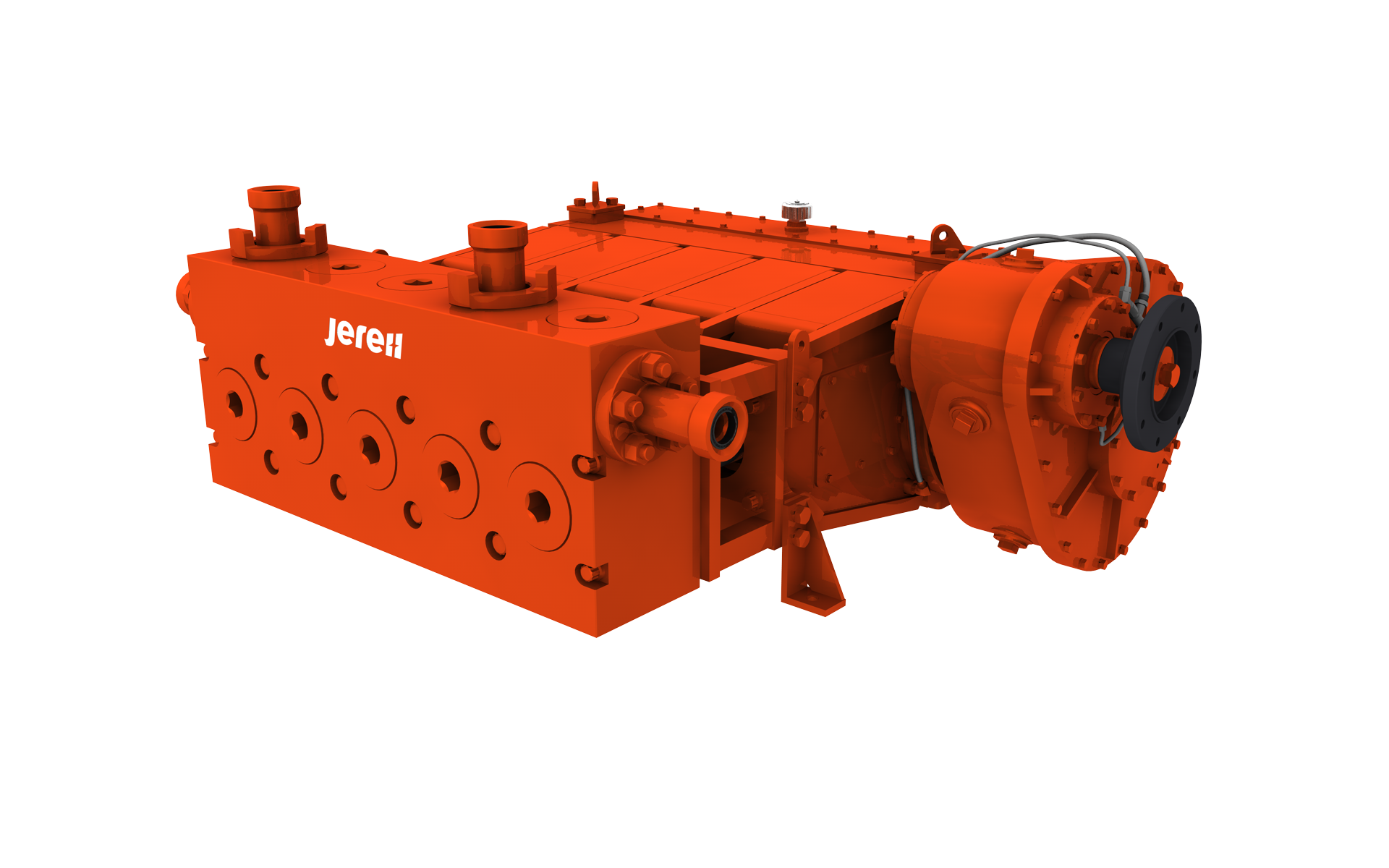

JR1000Q Quintuplex Plunger Pump

JR1000Q pump adopts offset design in power end, improving operation efficiency and reliability. Extended power end and enlarged operation space ease maintenance of fluid end. The modular design and parts interchangeability reduce inventory category, maintenance and control cost. With the brake power improved to 1,300 hp, JR1000Q pump is applicable for single-pump equipment, designed for cementing and acidizing applications of high pressure and large flowrate.

Description

JR1000Q pump adopts offset design in power end, improving operation efficiency and reliability. Extended power end and enlarged operation space ease maintenance of fluid end. The modular design and parts interchangeability reduce inventory category, maintenance and control cost. With the brake power improved to 1,300 hp, JR1000Q pump is applicable for single-pump equipment, designed for cementing and acidizing applications of high pressure and large flowrate.

Specifications

Plunger Dia. Disp. Displacement at Pump Strokes per Minute
in
(mm)
gal/rev
(L/rev)
50 100 150 200 300 450
gpm
(L/min)
psi
(MPa)
gpm
(L/min)
psi
(MPa)
gpm
(L/min)
psi
(MPa)
gpm
(L/min)
psi
(MPa)
gpm
(L/min)
psi
(MPa)
gpm
(L/min)
psi
(MPa)

2 3/4

69.85

0.77

2.92

39

146.0

16,836

116.1

77

292.0

16,836

116.1

116

438.0

16,836

116.1

154

584.0

12,999

89.6

231

876.0

8,666

59.8

347

1,314.0

5,777

39.8

3

76.2

0.92

3.48

46

173.8

15,000

103.5

92

347.5

15,000

103.5

138

521.3

15,000

103.5

184

695.0

10,923

75.3

275

1,042.5

7,282

50.2

413

1,563.8

4,854

33.5

3 1/2

88.9

1.25

4.73

62

236.5

10,394

71.7

125

473.0

10,394

71.7

187

710.9

10,394

71.7

250

946.0

8,025

55.3

375

1,419.0

5,350

36.9

562

2,128.4

3,567

24.6

4

101.6

1.63

6.18

82

308.9

7,958

54.9

163

617.8

7,958

54.9

245

926.7

7,958

54.9

326

1,235.6

6,144

42.4

490

1,853.3

4,096

28.2

734

2,780.0

2,731

18.8

4 1/2

114.3

2.07

7.82

103

390.9

6,288

43.4

207

781.9

6,288

43.4

310

1,172.8

6,288

43.4

413

1,563.8

4,854

33.5

620

2,345.6

3,236

22.3

929

3,518.4

2,158

14.9

Brake Power (hp/kW)

421/314

842/628

1,263/942

1,300/969

1,300/969

1,300/969

Input Speed (rpm)

231

461

692

922

1,383

2,075
