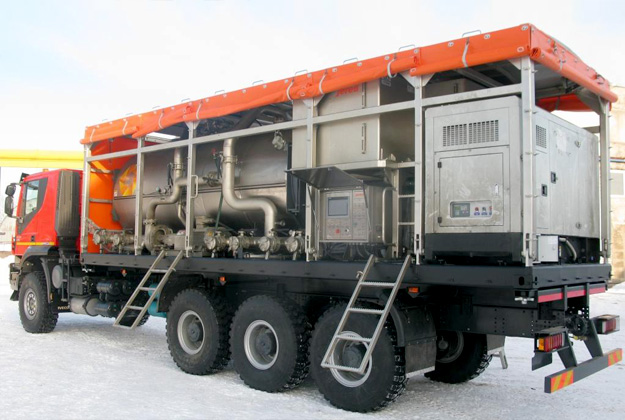

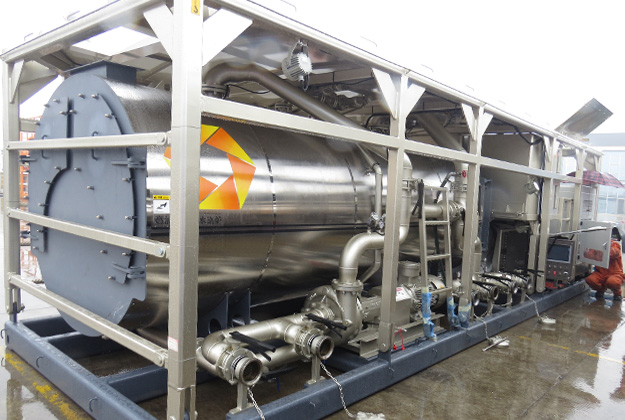

Frac Fluid Heating Unit

Super heating equipment suitable for heating the fracturing fluid or other medium in arctic areas;

Description

Features

⊙ Super heating equipment suitable for heating the fracturing fluid or other medium in arctic areas;


⊙ The maximized heat exchange area improves the heat exchange rate greatly to above 94%;


⊙ Dry burning protection and overtemperature protection ensure the safety during operation;


⊙ Jereh intelligent control system permits one-key setting and automatic temperature regulation.


⊙ Multi-function manifold allows heating of the supplied water, quick discharge and quick switch between the heated vessels.


⊙ Heater designed with insulation and low viscosity oil pump for arctic applications.


Specifications

Carrier Truck / Trailer / Skid
Chassis BENZ / BEIBEN
Generator 64 hp (48 kW)
Centrifugal Pump 5×4×14
Heater 4.1 MW (14 M Btu/h)
Fuel Diesel / LPG / CNG / LNG
Max. Working Pressure 43 psi (0.3 MPa)
Heating Capacity 528 gpm (2 m3/min)
Heating Medium Water / Frac Fluid
