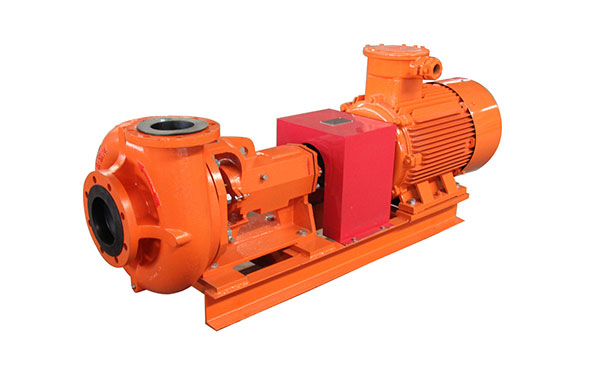

Centrifugal Sand Pump

The SB Series Centrifugal pumps are used for transferring slurry or mud or water. They can be used as the feed pump for a desander or desilter, or used as a mixing pump for a Jet mud mixer. They can also be used as a trip​ pump or supercharging pump for the rig mud pump.


All Jereh model centrifugal pumps use tungsten carbide mechanical seals and use bearings from first tier international suppliers. Spare parts are interchangeable with the commonly used international brand pumps which helps the customer to source spare parts easily. The open impeller design lowers axial thrust loads and make it easier for installation, repair and maintenance.


Model Flow (m3/h) Lift (m) Power (Kw) Motor Speed (RPM) Impeller (Inch)
SB8×6C-14J 320m3/h 35m 75kW 1450RPM(50Hz) 14in
SB8×6C-12J 1750RPM(60Hz) 12in
SB8×6C-13J 272m3/h 35m 55kW 1450RPM(50Hz) 13in
SB8×6C-11J 1750RPM(60Hz) 11in
SB6×5C-13J 200m3/h 35m 45kW 1450RPM(50Hz) 13in
SB6×5C-10J 1750RPM(60Hz) 10in
SB6×5C-12J 150m3/h 30m 37kW 1450RPM(50Hz) 12in
SB6×5C-9.5J 1750RPM(60Hz) 9.5in
SB5×4C-13J 120m3/h 35m 30kW 1450RPM(50Hz) 13in
SB5×4C-11J 1750RPM(60Hz) 11in
SB5×4C-12J 90m3/h 30m 22kW 1450RPM(50Hz) 12in
SB5×4C-10J 1750RPM(60Hz) 10in
SB4×3C-13J 65m3/h 35m 18.5kW 1450RPM(50Hz) 13in
SB4×3C-12J 1750RPM(60Hz) 12in
SB4×3C-12J 55m3/h 28m 15kW 1450RPM(50Hz) 12in
SB4×3C-10J 1750RPM(60Hz) 10in
SB4×3C-11J 45m3/h 25m 11kW 1450RPM(50Hz) 11in
SB4×3C-9.5J 1750RPM(60Hz) 9.5in
SB3 x 2C-10J 35m3/h 35m 7.5kW 1450RPM(50Hz) 10in
SB3×2C-9J 1750RPM(60Hz) 9in
