Underground Gas Storage Project in Turkey

It is Turkey's first underground gas storage facility for peak shaving inwinter, as well as strategic reserve on gas supply from Russia to Europe.

Description

It is Turkey's first underground gas storage facility for peak shaving inwinter, as well as strategic reserve on gas supply from Russia to Europe.The total storage volume is 1.5 BScm. 3 sets of CE certified engine driven reciprocating compressor packages are supplied for this project.

Specifications

Rated power 4,834.4 HP@1,000 rpm (3,605 kW@1,000 rpm)
Compressor model Ariel KBU/6
Driver brand Waukesha
Discharge capacity per unit 46.6 MMSCFD (132 × 104 Nm3/d)
Suction pressure 580.0 Psig (4 MPag)
Discharge pressure 2,900.0 Psig (20 MPag)

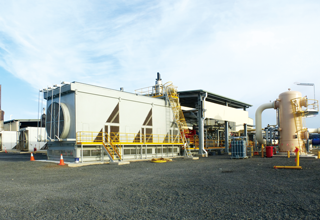

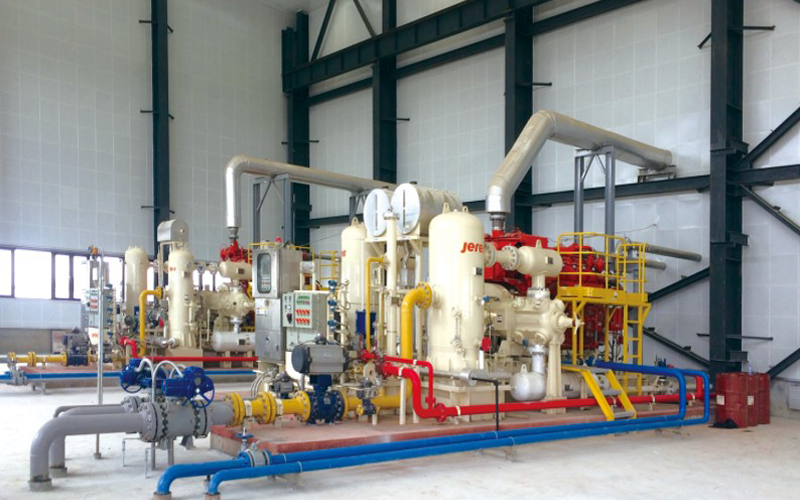

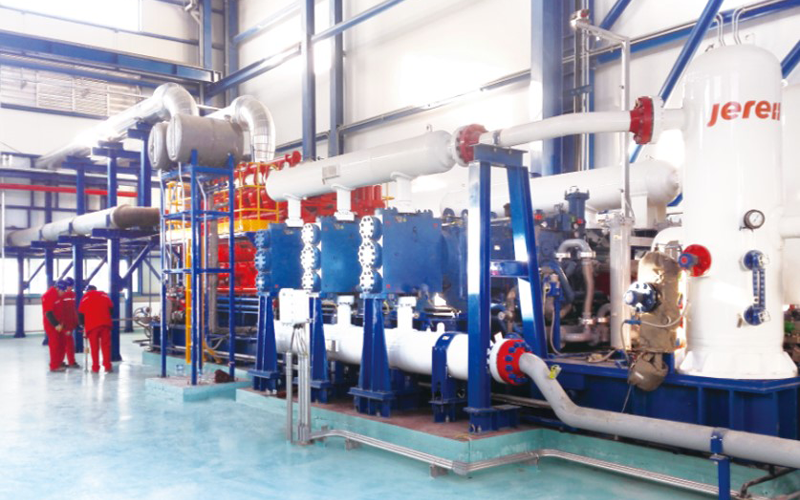

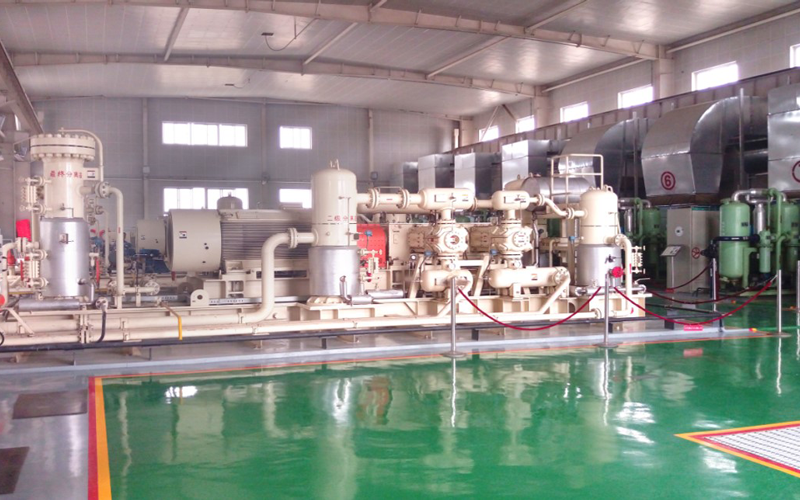

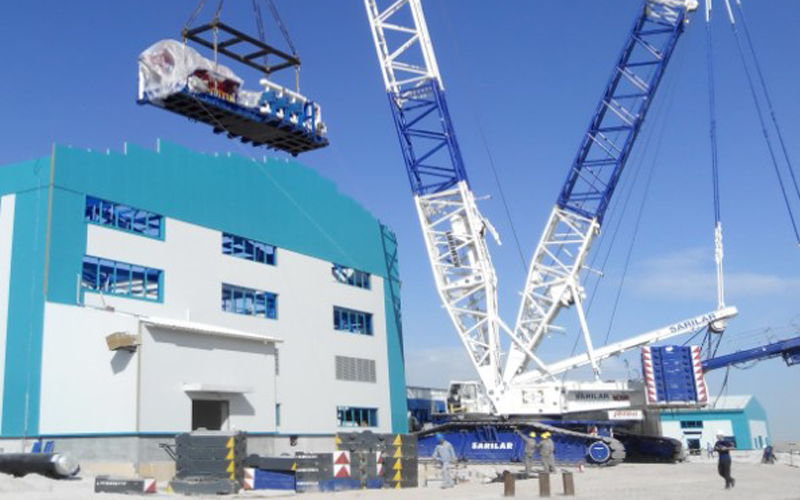

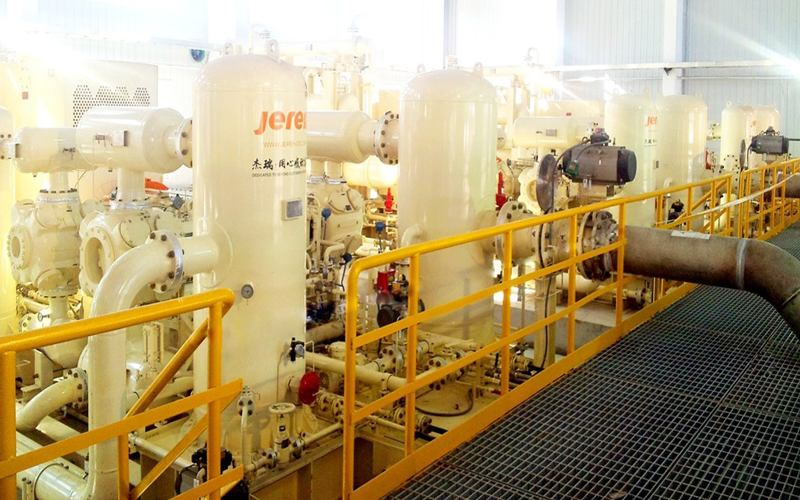

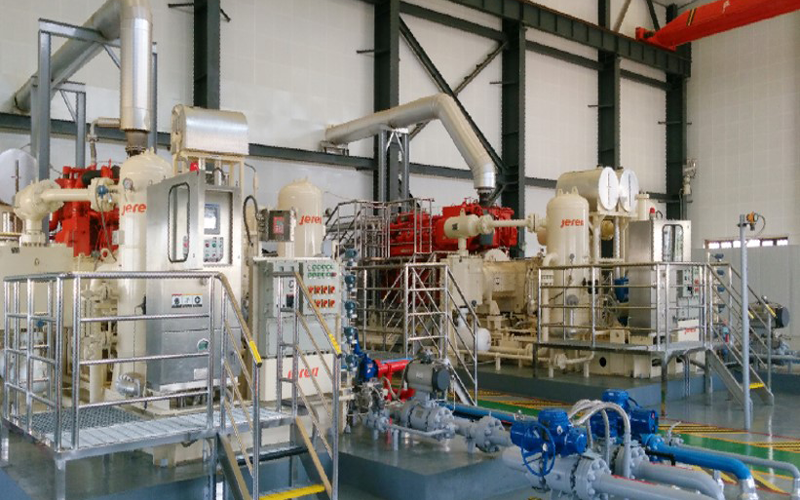

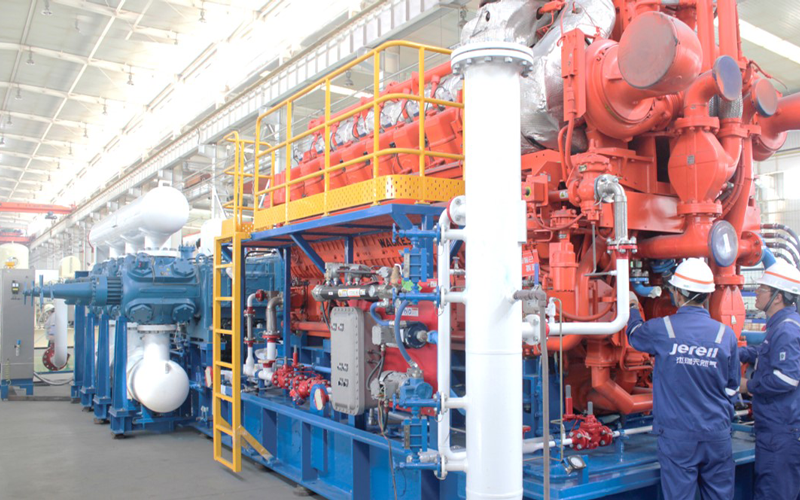

Photo Gallery
