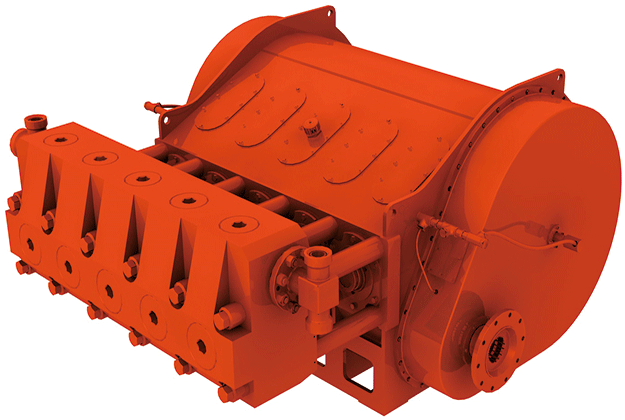

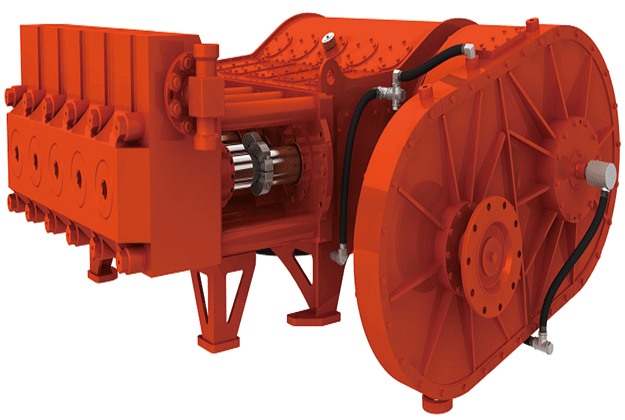

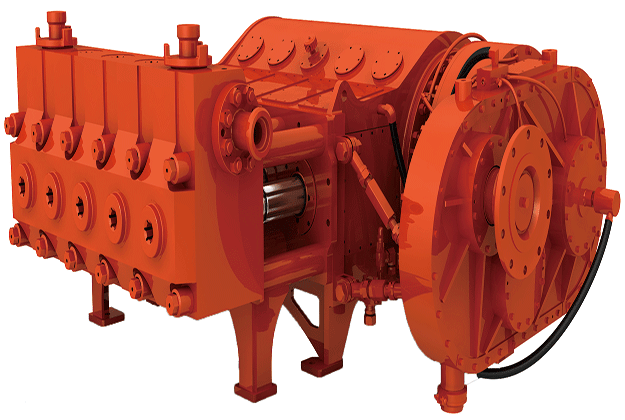

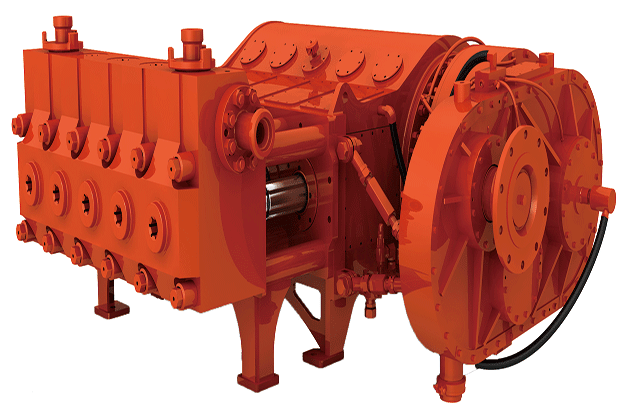

JR3300QP Quintuplex Plunger Pump

JR3300QP plunger pump is a horizontal single-acting reciprocating quintuplex plunger pump, applicable for acidizing, fracturing or other stimulation operations.

Description

JR3300QP plunger pump is a horizontal single-acting reciprocating quintuplex plunger pump, applicable for acidizing, fracturing or other stimulation operations.
Rated Brake Power: 3,300 hp
Max. Rod Load: 260,700 lbf
Stroke Length: 10 in
Gear Ratio: 7.8:1
Overall Dimensions: 95.5×100×46.3 in
Weight: 21,164 lb

Specifications

Plunger Dia.
Disp.
Displacement at Pump Strokes per Minute
in(mm)
gal/rev(L/rev)
50 100 150 200 220 240
gpm(L/min)
psi(MPa)
gpm(L/min)
psi(MPa)
gpm(L/min)
psi(MPa)
gpm(L/min)
psi(MPa)
gpm(L/min)
psi(MPa)
gpm(L/min)
psi(MPa)
31/2
2.08
104
20,000
208
20,000
312
16,296
417
12,222
458
11,111
500
10185
88.9
7.88
394.2
137.9
788.3
137.9
1,182.5
112.4
1,576.6
84.3
1,734.3
76.6
1,891.9
70.2
33/4
2.39
120
20,000
239
20,000
359
14,196
478
10,647
526
9,679
574
8,872
95.25
9.05
452.5
137.9
904.9
137.9
1,357.4
97.9
1,809.9
73.4
1,990.9
66.8
2171.9
61.2
4
2.72
136
20,000
272
18,715
408
12,477
544
9,358
598
8,507
653
7,798
101.6
10.30
514.8
137.9
1,029.6
129.1
1,544.4
86.0
2,059.3
64.5
2,265.2
58.7
2,471.1
53.8
41/2
3.44
172
16,392
344
14,788
516
9,858
689
7,394
757
6,722
826
6,161
114.3
13.03
651.6
113.0
1,303.1
102.0
1,954.7
68.0
2,606.2
51.0
2,866.9
46.4
3,127.5
42.5
5
4.25
213
13,277
425
11,978
638
7,985
850
5,989
935
5,444
1,020
4,991
127
16.09
804.4
91.6
1,608.8
82.6
2,413.2
55.1
3,217.6
41.3
3,539.4
37.5
3,861.1
34.4
Brake Power (hp/kW)
1,829/1,364
3,300/2,461
3,300/2,461
3,300/2,461
3,300/2,461
3,300/2,461
Input Speed (rpm)
390
780
1,170
1,560
1,716
1,872
Based on 90% ME and 100% VE.
