Associated Gas Recovery Project in Russia

4 sets of truck-mounted motor driven screw compressor packages are supplied to Russian customers.

Description

4 sets of truck-mounted motor driven screw compressor packages are supplied to Russian customers. These CU-TR certified screw compressor packages will boost wellhead associated gas and transfer the gas to downstream reciprocating compressors, after which the associated gas will be re-injected to the underground.

Specifications

Rated power 536 HP@1500 rpm (400 kW@1500 rpm)
Compressor model LeROI LG 30213
Driver brand Nanyang
Discharge capacity per unit 2.687 MMSCFD (7.2 × 104 Nm3/d)
Suction pressure 1.45 Psig (0.01 MPag)
Discharge pressure 87.02 Psig (0.6 MPag)

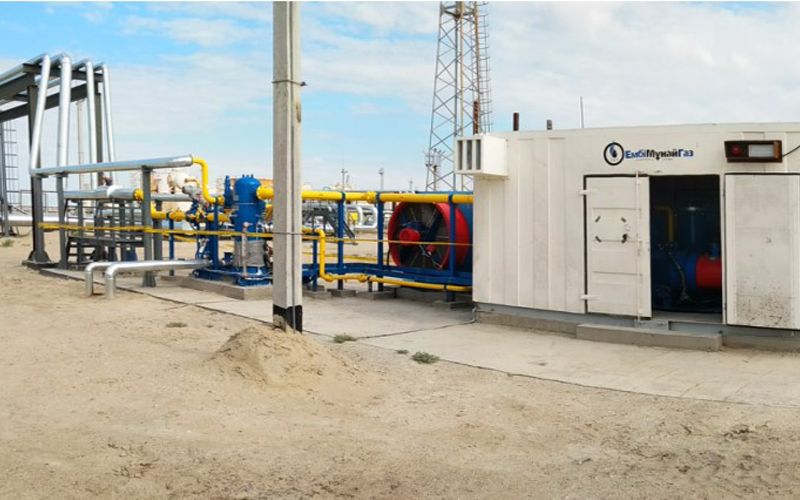

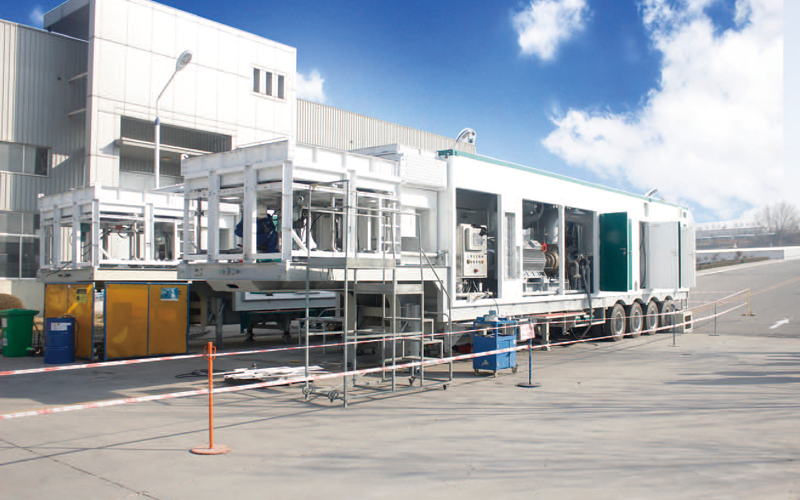

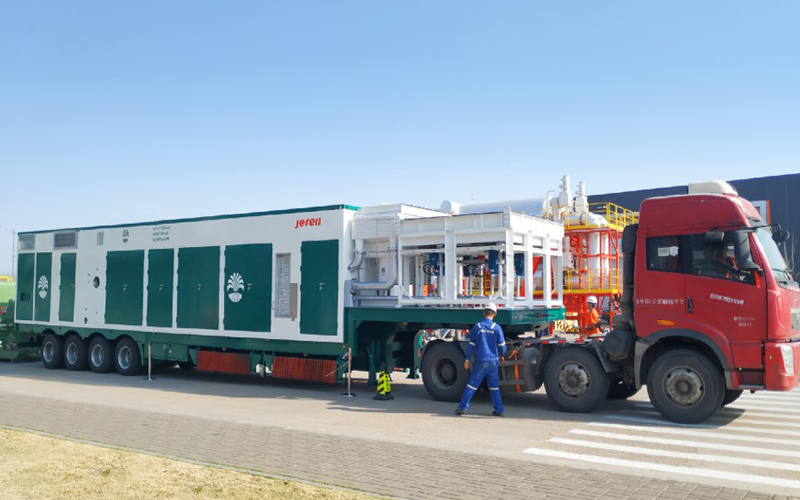

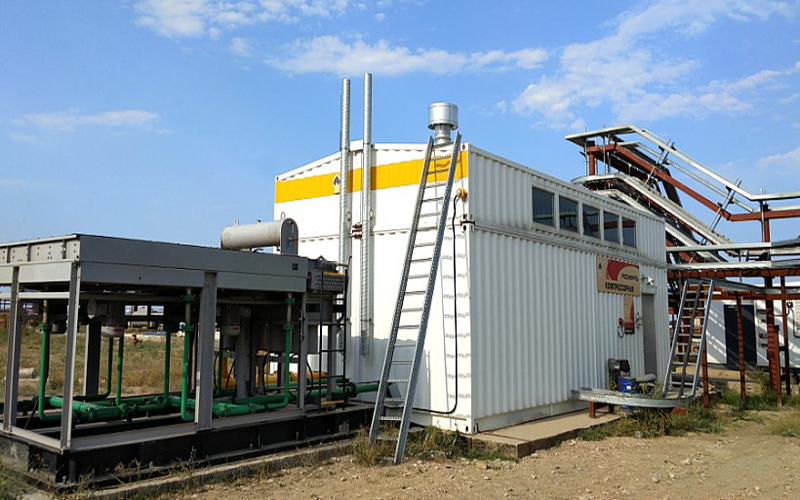

Photo Gallery
